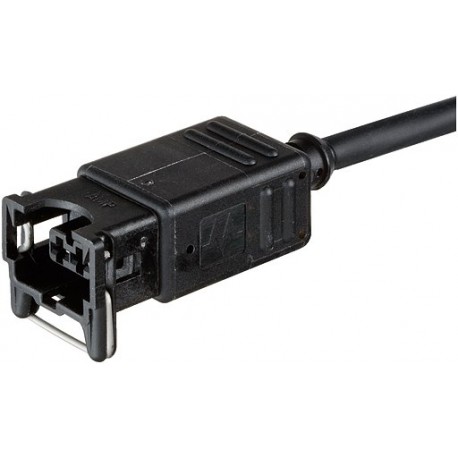

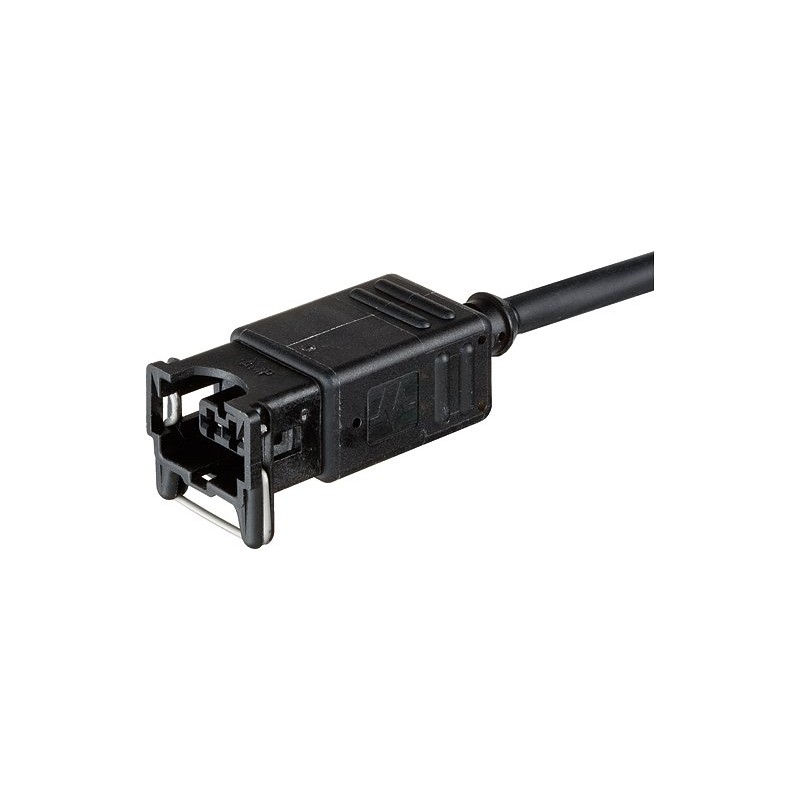

7000-70001-7500400 MURRELEKTRONIK Junior Timer valve plug 0° with cable PUR 2x0.75 black 4m
7000-70001-7500400
MURRELEKTRONIK
Junior Timer valve plug 0° with cable PUR 2x0.75 black 4m
Junior Timer valve 0° with cable
Valve connectors with cable
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
More info
▲Female straight
0...230 V AC/DC
without components
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
0...230 V AC/DC
without components
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Form
| Form | 70001 |
|---|
Technical Data
| Operating voltage | max. 230 V AC/DC |
|---|---|
| Operating current per contact | max. 4 A |
| Protection | IP65 inserted and tightened (EN 60529) |
| Housing | Black plastic, flame retardant |
| Rated surge voltage | 4.0 kV |
General data
| Temperature range | -25...+85 °C, depending on cable quality |
|---|
Cables
| Cable number | 750 |
|---|---|
| No./diameter of wires | 2× 0.75 mm² |
| Wire isolation | PVC (br, bl) |
| Jacket Color | black |
| Material (jacket) | PUR/PVC |
| Outer Ø | 5.9 mm ±5% |
| Bend radius (moving) | 15× outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Cable identification | 750 |
| Approval (cable) | CE conform |
| Cable weight [g/m] | 48,40 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single wire Ø (core) | 0.2 mm |
| Construction (core) | 24× 0.2 mm (multi-strand wire class 5) |
| Diameter (core) | 2× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire isolation) | PVC |
| Color/numbering of wires | br, bl |
| Stranding combination | 2 wires twisted |
| Shield | no |
| Material (jacket) | PUR/PVC |
| Outer-Ø (jacket) | 5.9 mm ±5% |
| Color (jacket) | black |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Nominal voltage | 300 V AC |
| Test voltage | 2000 V AC |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Bend radius (moving) | 15× outer Ø |
Commercial data
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879576444 |
| eClass | 27279218 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes |
|
| 7000-70001-7500400 7000-70001-7500400 EN_7000-70001-7500400.pdf | 239 Kbytes |
|
| Download general catalog |
|
