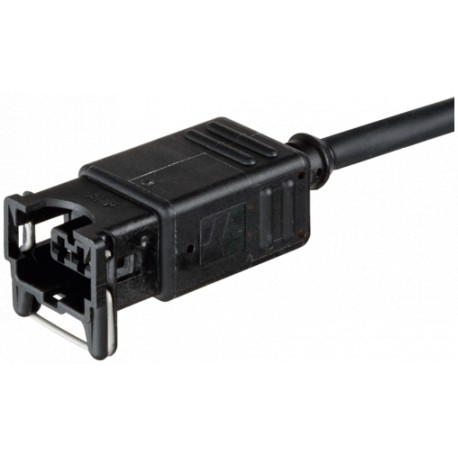

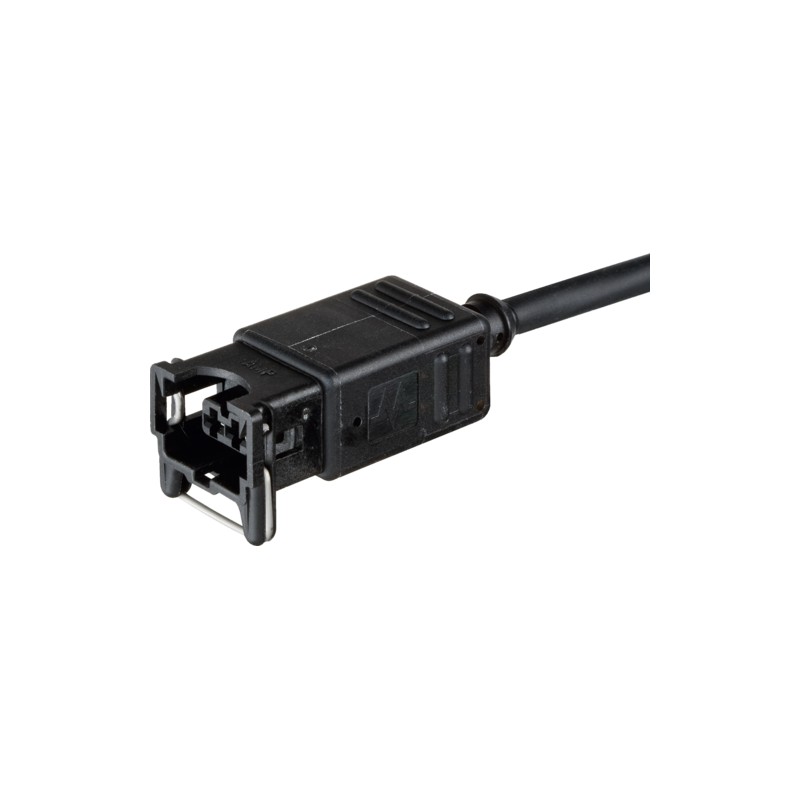

7000-70001-7500200 MURRELEKTRONIK JUNIOR TIMER VALVE PLUG PUR 2x0,75 black 2m
7000-70001-7500200
MURRELEKTRONIK
Valve plug MJC 0° with cablePUR 2x0.75 bk 2m
Valve plug MJC 0° with cable
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Female straight
0...230 V AC/DC
without components
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
| Form | 70001 |
|---|
| Operating voltage | max. 230 V AC/DC |
|---|---|
| Rated surge voltage | 4.0 kV |
| Operating current per contact | max. 4 A |
| Protection | IP65 inserted and tightened (EN 60529) |
| Housing | Black plastic, flame retardant |
| Temperature range | -25...+85 °C, depending on cable quality |
|---|
| Cable identification | 750 |
|---|---|
| Approval (cable) | CE conform |
| Cable weight [g/m] | 48,4 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single wire Ø (core) | 0.2 mm |
| Construction (core) | 24× 0.2 mm (multi-strand wire class 5) |
| Diameter (core) | 2× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire isolation) | PVC |
| Color/numbering of wires | br, bl |
| Stranding combination | 2 wires twisted |
| Shield | no |
| Material (jacket) | PUR/PVC |
| Outer-Ø (jacket) | 5.9 mm ±5% |
| Color (jacket) | black |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Nominal voltage | 300 V AC |
| Test voltage | 2000 V AC |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Bend radius (moving) | 15× outer Ø |
| Product article number of manufacturer | 7000-70001-7500200 |
|---|---|
| Cable length | 2 m |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-70001-7500200 7000-70001-7500200 EN_7000-70001-7500200.pdf | 84 Kbytes |
|
