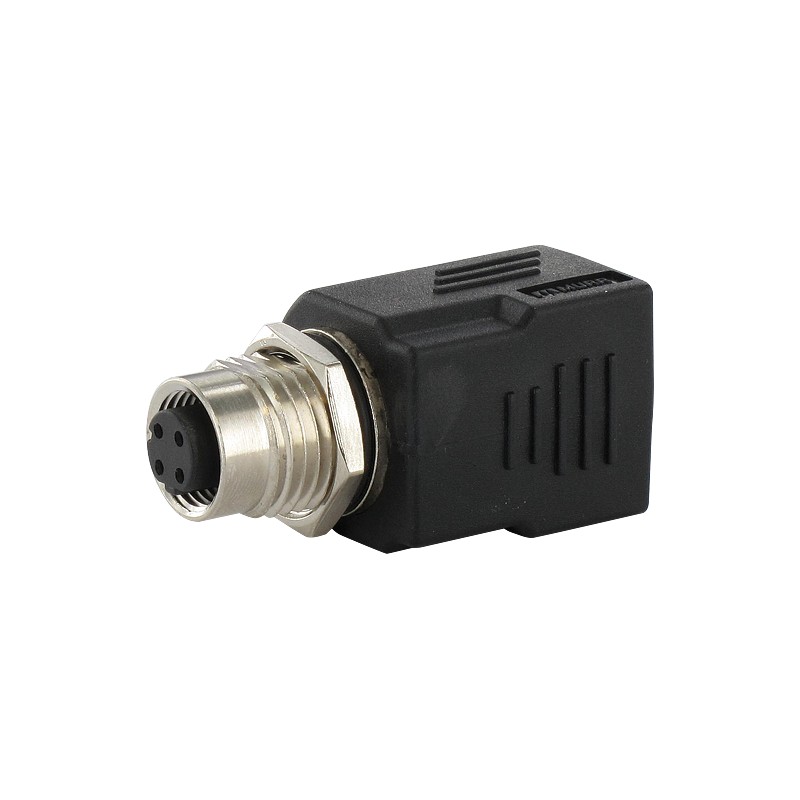

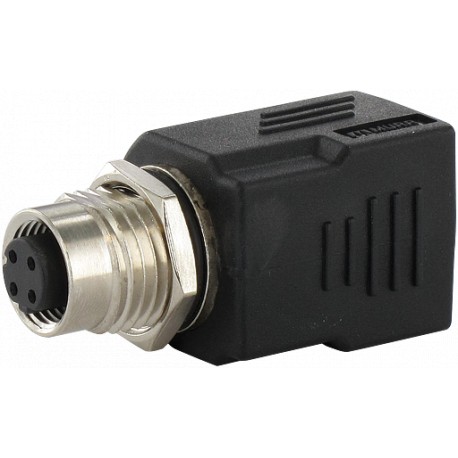

7000-44671-0000000 MURRELEKTRONIK M12 female D-coded / RJ45 Ethernet adapter 0° 4-pol.
7000-44671-0000000
MURRELEKTRONIK
M12 female D-coded / RJ45 Ethernet adapter 0° 4-pol.
Adaptor M12 female / RJ45 0°4-pol., shielded, CAT5
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-44671-0000000 |
| Weight: | 0.041 kg |
Control cabinet entry system
Female straight – female straight
M12 – RJ45, 4-pole
D-coded
shielded
Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 44671 |
|---|
| Operating voltage | max. 60 V DC |
|---|---|
| Operating current per contact | max. 1.76 A |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Transfer rate | up to 100 Mbit/s full duplex |
| Coding | M12, D-coded |
| Protection | IP68 (M12) - IP20 (RJ45) |
| Locking material | Brass, chrome plated |
| Material | PUR |
| Temperature range | -25...+85 °C |
|---|
| country of origin | CZ |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879566896 |
| eClass | 27143423 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-44671-0000000 7000-44671-0000000 7000-44671-0000000_Data_Sheet_1.pdf | 187 Kbytes |
|
| Download general catalog |
|
