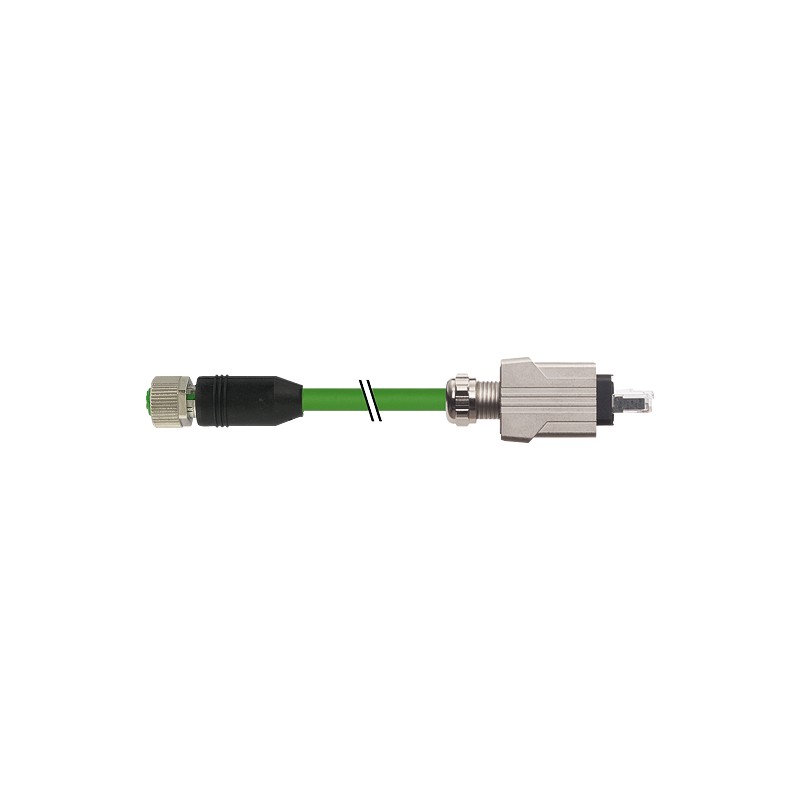

7000-44625-7960750 MURRELEKTRONIK Push Pull RJ45 0° / M12 female 0° D-cod. Ethernet PUR 2x2xAWG22 shielded g..
7000-44625-7960750
MURRELEKTRONIK
Push Pull RJ45 0° / M12 female 0° D-cod. Ethernet PUR 2x2xAWG22 shielded green UL/CSA + drag chain 7,5m
M12 fem. 0° D-cod./RJ45 Push Pull 0° shielded AIDAPUR 1x4xAWG22 shielded gn UL/CSA+drag ch. 7.5m
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-44625-7960750 |
| Weight: | 0.606 kg |
Female straight – male straight
M12 – RJ45PP, 4-pole
D-coded
shielded
8-pole, partly used
Push Pull
The resistance to aggressive media should be individually tested for your application. Further details on request. Further cable lengths on request. Plastic housings with good resistance against chemicals and oils.
| Form | 44625 |
|---|
| Cable number | 796 |
|---|---|
| No./diameter of wires | 2×2×0.34 mm² |
| Wire isolation | PE (wh, ye, bl, or) |
| C-track properties | 3 Mio. |
| Jacket Color | green |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 6.7 mm ±5% |
| Bend radius (moving) | 12 × outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Cable identification | 796 |
| Approval (cable) | UL (AWM-Style 20233/11602), CSA; CE |
| Cable weight [g/m] | 71 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Diameter (core) | 2×2×AWG22 |
| Material (wire isolation) | PE |
| Wire-Ø incl. isolation | 1.4 mm ±5% |
| Color/numbering of wires | wh, ye, bl, or |
| Shield | yes |
| min. 85% | |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 6.7 mm ±5% |
| Color (jacket) | green |
| thermal resistance | flame retardant |
| Nominal voltage | 300 V |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Bend radius (fixed) | 5 × outer Ø |
| Bend radius (moving) | 12 × outer Ø |
| No. of bending cycles (C-track) | max. 3 Mio. (25 °C) |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| Travel speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 2 m/s² |
| Operating voltage | max. 60 V DC |
|---|---|
| Operating voltage (only UL listed) | max. 30 V DC |
| Operating current per contact | max. 1.76 A |
| Material group | IEC 60664-1, category I |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Transfer rate | up to 100 Mbit/s full duplex |
| Coding | M12, D-coded |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Compression gland | M12 (SW13) |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Locking material | Zinc die casting, matte nickel plated |
| Material | PUR |
| suitable for corrugated tube (internal Ø) | without |
| Standards | DIN EN 61076-2-101 (M12) |
|---|---|
| Pollution Degree | 3 |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
|---|---|
| customs tariff number | 85444210 |
| EAN | 4048879717700 |
| eClass | 27061801 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-44625-7960750 7000-44625-7960750 7000-44625-7960750_Data_Sheet_1.pdf | 138 Kbytes |
|
| Download general catalog |
|
