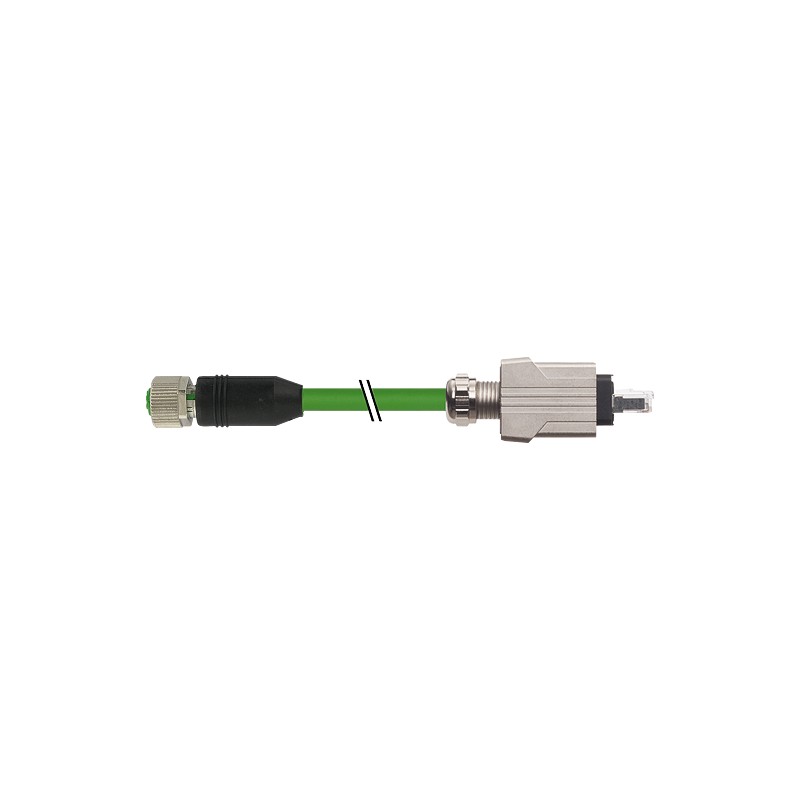

7000-44625-7930700 MURRELEKTRONIK Push Pull RJ45 0° / M12 female 0° D-cod. Ethernet PUR 1x4xAWG22/7 shielded..
7000-44625-7930700
MURRELEKTRONIK
Push Pull RJ45 0° / M12 female 0° D-cod. Ethernet PUR 1x4xAWG22/7 shielded green UL/CSA + robot 7m
M12 fem. 0° D-cod./RJ45 Push Pull 0° shielded AIDAPUR 1x4xAWG22 shielded gn UL/CSA+robot 7m
Push Pull RJ45 0° / M12 female 0° D-cod. Ethernet
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲The resistance to aggressive media should be individually tested for your application. Further details on request.
Female straight – male straight
M12 – RJ45PP, 4-pole
D-coded
shielded
8-pole partly used
Push Pull
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
| Form | 44625 |
|---|
| Operating voltage | max. 60 V DC |
|---|---|
| Operating voltage (only UL listed) | max. 30 V DC |
| Operating current per contact | max. 1.76 A |
| Material group | IEC 60664-1, category I |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Transfer rate | up to 100 Mbit/s full duplex |
| Coding | M12, D-coded |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Compression gland | M12 (SW13) |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Locking material | Zinc die casting, matte nickel plated |
| Material | PUR |
| suitable for corrugated tube (internal Ø) | without |
| Standards | DIN EN 61076-2-101 (M12) |
|---|---|
| Pollution Degree | 3 |
| Temperature range | -25...+85 °C, depending on cable quality |
| No./diameter of wires | 1× 4× 0.34 mm² |
|---|---|
| Wire isolation | PE (wh, ye, bl, or) |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 6.6 mm ±5% |
| Bend radius (moving) | 12× outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+60 °C |
| Cable identification | 793 |
| Approval (cable) | UL (AWM-Style 20233/10578), CSA; CE |
| Cable weight [g/m] | 69,30 |
| Material (wire) | Cu wire, tin plated |
| Resistor (core) | max. 60 Ω/km (20 °C) |
| Single wire Ø (core) | 0.16 mm |
| Construction (core) | 19× 0.160 mm |
| Diameter (core) | 1× 4× AWG22/19 (0.382) |
| Material (wire isolation) | PE |
| Wire-Ø incl. isolation | 1.6 mm ±5% |
| Color/numbering of wires | wh, ye, bl, or |
| Shield | yes |
| optical shield cover | min. 85% |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 6.6 mm ±5% |
| Color (jacket) | green |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| thermal resistance | flame retardant |
| Nominal voltage | 300 V |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+60 °C |
| Bend radius (fixed) | 8× outer Ø |
| Bend radius (moving) | 12× outer Ø |
| Torsion stress | ±180°/m |
| No. of torsion cycles | max. 4 Mio. (25 °C) |
| Jacket Color | green |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879561808 |
| eClass | 27061801 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-44625-7930700 7000-44625-7930700 EN_7000-44625-7930700.pdf | 118 Kbytes |
|
