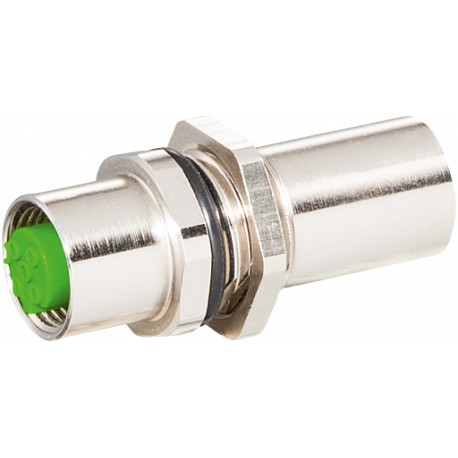

7000-44611-0000000 MURRELEKTRONIK M12 gender-changer female / female D-cod. For Ethernet
7000-44611-0000000
MURRELEKTRONIK
M12 gender-changer female / female D-cod. For Ethernet
M12 gender-changer female / female D-cod.
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-44611-0000000 |
| Weight: | 0.028 kg |
Control cabinet entry system
Female/female
M12, 4-pole
D-coded
shielded
| Form | 44611 |
|---|
| Operating voltage | max. 60 V AC/DC |
|---|---|
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 4 A |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Transfer rate | up to 100 Mbit/s full duplex |
| Coding | M12, D-coded |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Compression gland | M16 (SW19) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Material | Brass, nickel plated |
| Temperature range | -25...+85 °C |
|---|
| country of origin | DE |
|---|---|
| customs tariff number | 85369010 |
| EAN | 4048879140928 |
| eClass | 27279220 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-44611-0000000 7000-44611-0000000 7000-44611-0000000_Data_Sheet_1.pdf | 143 Kbytes |
|
