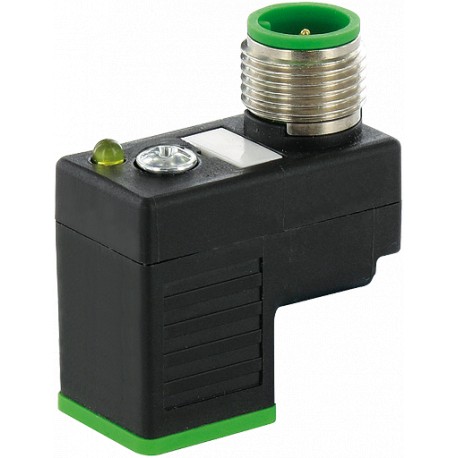

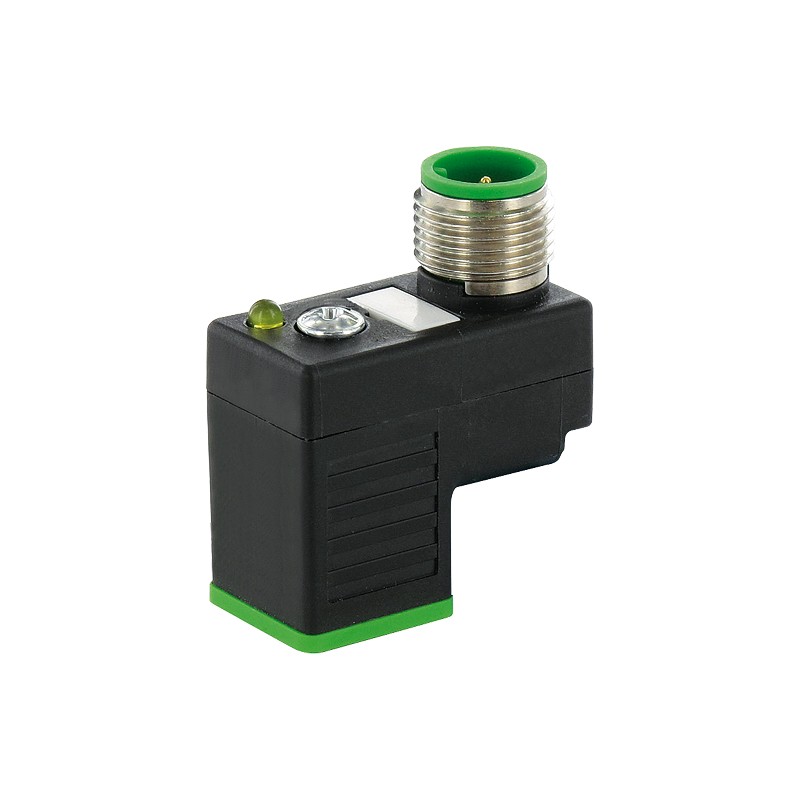

7000-42811-0000000 MURRELEKTRONIK M12 adaptor top / MSUD valve plug form C 8 mm
7000-42811-0000000
MURRELEKTRONIK
M12 adaptor top / MSUD valve plug form C 8 mm
Adaptor M12 on top A-cod. / MSUD valve plug C-8mm3-pol.
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-42811-0000000 |
| Weight: | 0.035 kg |
Form C (8 mm) – M12, connector top entry
24 V AC ±20% / DC ±25%
LED and suppression
3-pole
Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 42811 |
|---|
| Operating voltage | 24 V AC ±20% / DC ±25% |
|---|---|
| Operating current per contact | max. 4 A |
| Current consumption | max. 15 mA |
| Configuration | 2 contacts + bridged PE |
| Switch off peak | max. 55 V |
| Locking of ports | M3/M12 × 1 mm (recommended torque 0.4/0.6 Nm) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Temperature range | -25...+85 °C |
|---|
| country of origin | CZ |
|---|---|
| customs tariff number | 85369010 |
| EAN | 4048879348706 |
| eClass | 27143423 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-42811-0000000 7000-42811-0000000 7000-42811-0000000_Data_Sheet_1.pdf | 226 Kbytes |
|
