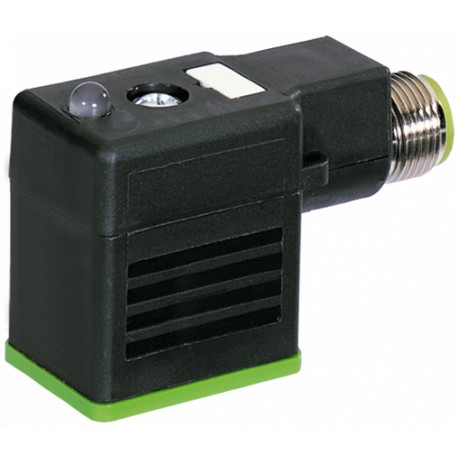

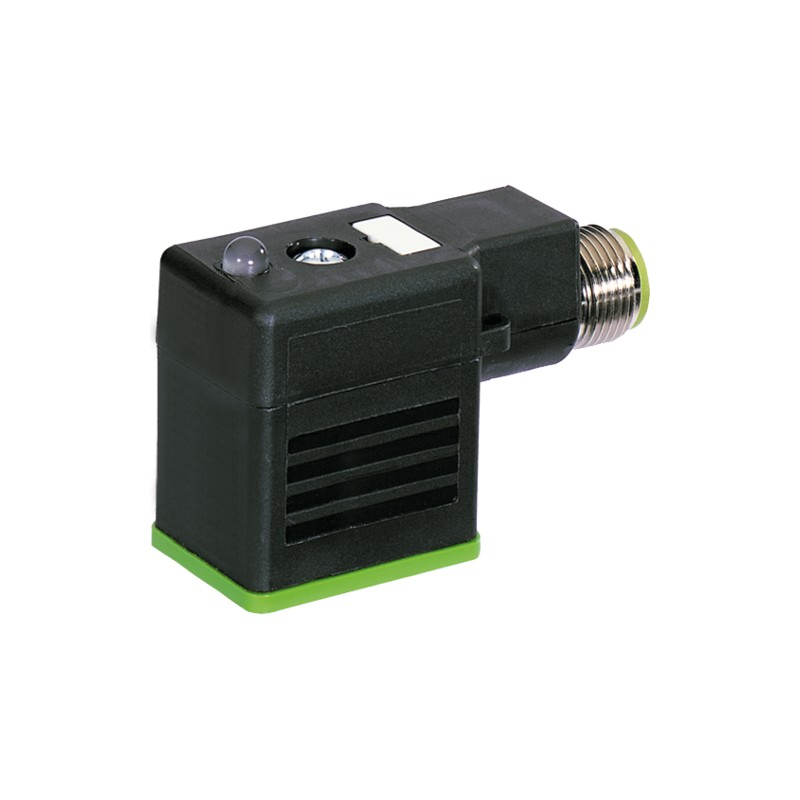

7000-41921-0000000 MURRELEKTRONIK M12 male rear / MSUD valve plug form B 10 mm
7000-41921-0000000
MURRELEKTRONIK
M12 male rear / MSUD valve plug form B 10 mm
M12 MALE ON REAR OF MSUD VALVE PLUG FORM B 10 MM
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-41921-0000000 |
| Weight: | 0.031 kg |
| Country of origin: | CZ |
Technical Data
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family construction form | MSUD |
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Coding | A |
| Operating voltage AC max. | 125 V |
|---|---|
| Operating voltage DC max. | 125 V |
| Current operating per contact max. | 4 A |
| Status indication LED | no |
|---|
| Mounting set | M3 |
|---|
| No. of poles | 2 + PE |
|---|
| Degree of protection (EN IEC 60529) | IP67 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
| Coating locking | verzinkt |
|---|---|
| Locking material | Steel |
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-41921-0000000 7000-41921-0000000 7000-41921-0000000_Data_Sheet_1.pdf | 258 Kbytes |
|
| Download general catalog |
|
