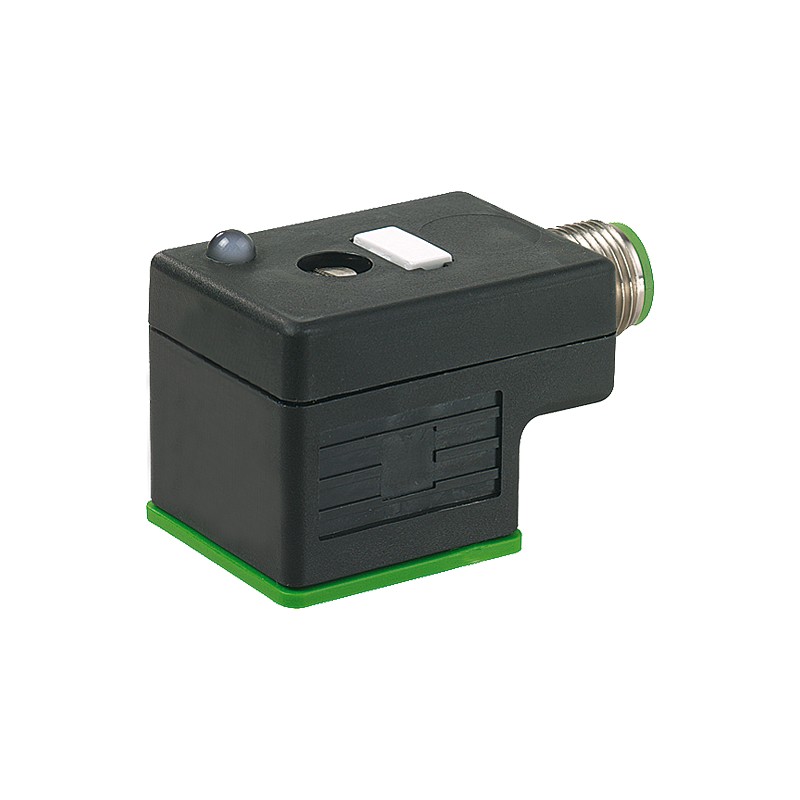

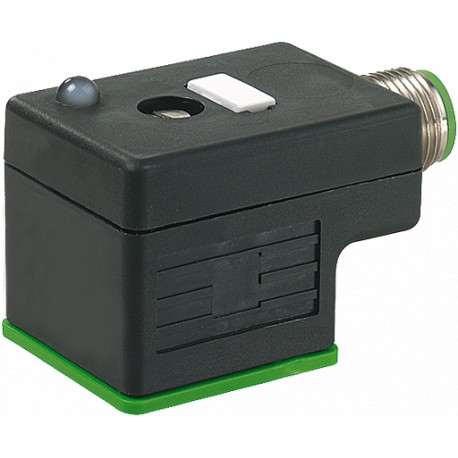

7000-41381-0000000 MURRELEKTRONIK M12 adaptor rear / MSUD valve plug form A 18 mm
7000-41381-0000000
MURRELEKTRONIK
M12 adaptor rear / MSUD valve plug form A 18 mm
Adaptor M12 male on rear / MSUD valve plug A-18mm3-pol. A-cod.
Adatt. M12 att. vert./MSUD c.elv. f.A 18mm
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-41381-0000000 |
| Weight: | 0.028 kg |
110 V AC/DC ±10%
without components
3-pole
Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 41381 |
|---|
| Operating voltage | 110 V AC/DC ±10% |
|---|---|
| Operating current per contact | max. 4 A |
| Configuration | 2 contacts + bridged PE |
| Protection | IP67 inserted and tightened (EN 60529) |
| Locking of ports | M3/M12 × 1 mm (recommended torque 0.4/0.6 Nm) |
| Rated surge voltage | 1.5 kV |
| Temperature range | -25...+85 °C |
|---|
| country of origin | CZ |
|---|---|
| customs tariff number | 85369010 |
| EAN | 4048879144643 |
| eClass | 27143423 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-41381-0000000 7000-41381-0000000 7000-41381-0000000_Data_Sheet_1.pdf | 259 Kbytes |
|
| Download general catalog |
|
