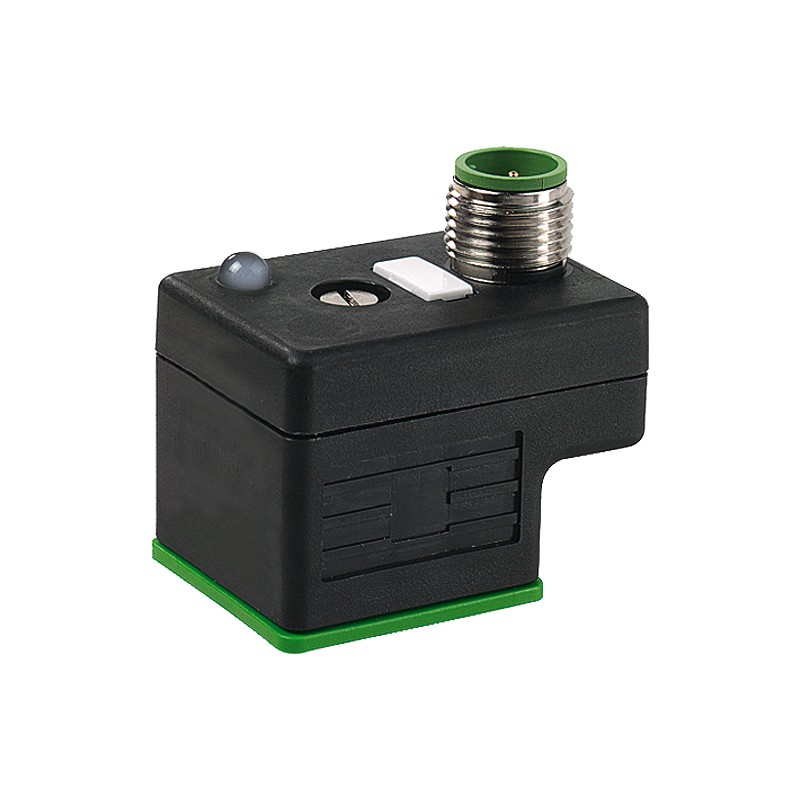

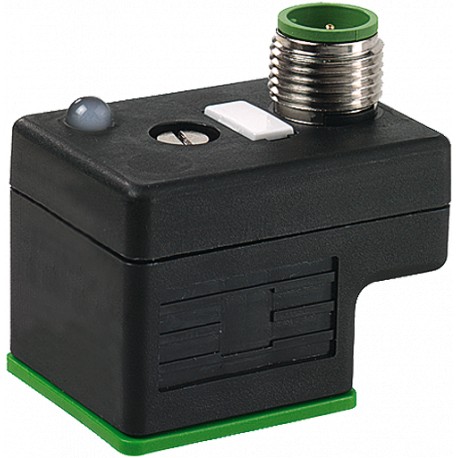

7000-41281-0000000 MURRELEKTRONIK M12 adaptor top / MSUD valve plug form A 18mm
7000-41281-0000000
MURRELEKTRONIK
M12 adaptor top / MSUD valve plug form A 18mm
M12 ADAPTOR ON TOP OF MSUD VALVE PLUG FORM A 18MM
Adatt. M12 att. vert./MSUD c.elv. f.A 18mm
Valve connectors with cable
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-41281-0000000 |
| Weight: | 0.029 kg |
Form A (18 mm) – M12, connector top entry
24 V AC/DC ±25%
LED (yellow)
3-pole
Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
24 V AC/DC ±25%
LED (yellow)
3-pole
Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
Form
| Form | 41281 |
|---|
Technical Data
| Operating voltage | 24 V AC/DC ±25% |
|---|---|
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 4 A |
| Configuration | 2 contacts + bridged PE |
| Material group | IEC 60664-1, category I |
| LED display | yellow |
| Locking of ports | M3/M12 × 1 mm (recommended torque 0.4/0.6 Nm) |
| Protection | IP67 inserted and tightened (EN 60529) |
General data
| Pollution Degree | 3 |
|---|---|
| Mounting method | inserted, tightened |
| Temperature range | -25...+85 °C |
Commercial data
| country of origin | CZ |
|---|---|
| customs tariff number | 85369010 |
| EAN | 4048879144711 |
| eClass | 27143423 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes |
|
| 7000-41281-0000000 7000-41281-0000000 7000-41281-0000000_Data_Sheet_1.pdf | 266 Kbytes |
|
