7000-30105-0000000 MURRELEKTRONIK SVS ECO LED valve plug form C 8mm LED VDR 24V 2+PE field-wireable M12
7000-30105-0000000
MURRELEKTRONIK
SVS ECO LED valve plug form C 8mm LED VDR 24V 2+PE field-wireable M12
SVS Eco valve plug C-8mm screw terminal2-pol. + PE, max. 0,5mm², 4 -6mm, LED+VDR 24V
SVS ECO LED VALVE PLUG FORM C 8MM LED VDR 24V
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲24 V AC/DC ±15%

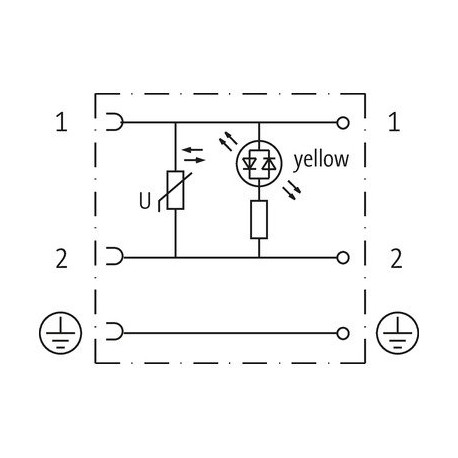

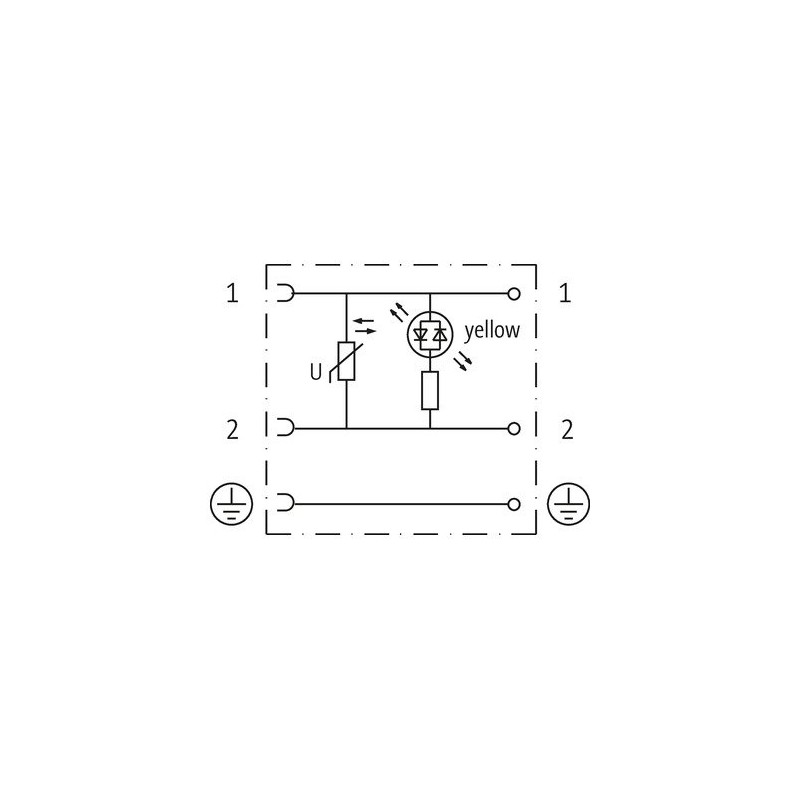

LED and VDR
metric
Field wireable (screw terminals)
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 30105 |
|---|
| Operating voltage | 24 V AC/DC ±15% |
|---|---|
| Operating current per contact | max. 1.5 A |
| LED display | yellow |
| Locking of ports | M2.5 (recommended torque 0.4 Nm) |
| Compression gland | M12×1.5 mm |
| Connection cross section | 0.34...0.5 mm² |
| Sealing range (cable Ø) | 4...6 mm |
| Protection | IP65 inserted and tightened (EN 60529) |
| Additional suppressor | VDR |
| Tightening torque (clamp screw) | 0.2 ±0.1 Nm |
| Configuration | 2 contacts + PE |
| Mounting method | inserted, tightened |
|---|---|
| Material (gasket) | NBR |
| Temperature range | -40...+90 °C |
| Housing | PA6 GF20: opaque (milky) |
| country of origin | HU |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879187008 |
| eClass | 27279221 |
| Packaging unit | 1.000 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-30105-0000000 7000-30105-0000000 EN_7000-30105-0000000.pdf | 99 Kbytes |
|
| Download general catalog |
|
