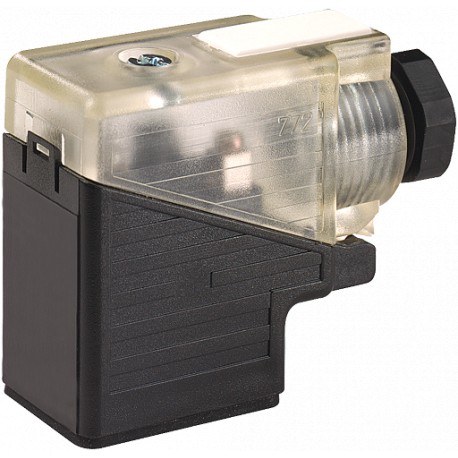

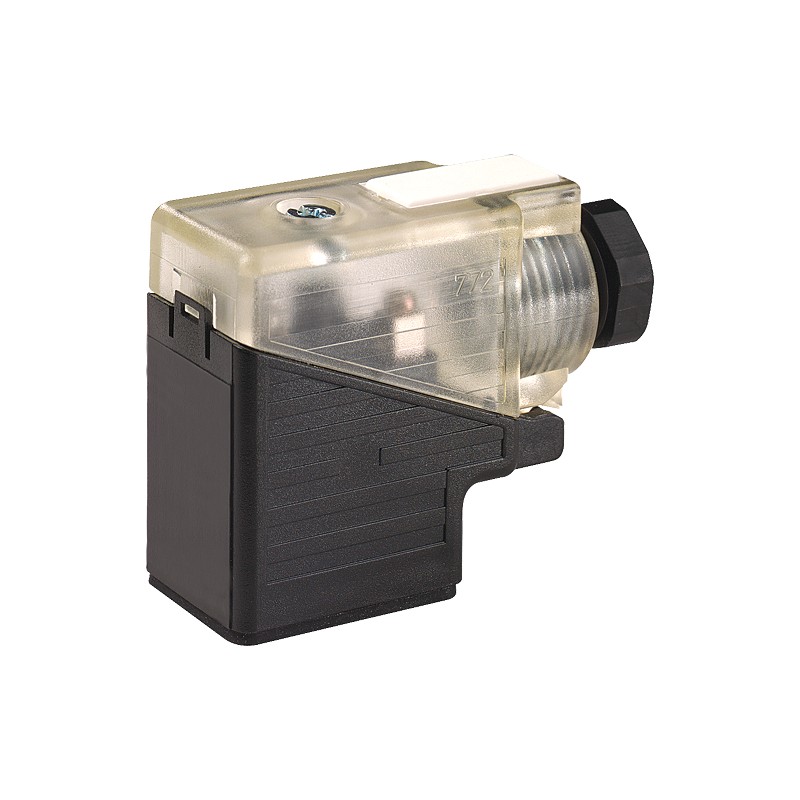

7000-29781-0000000 MURRELEKTRONIK SVS valve plug form B 10 mm field-wireable 0...230V PG9
7000-29781-0000000
MURRELEKTRONIK
SVS valve plug form B 10 mm field-wireable 0...230V PG9
SVS VALVE PLUG FORM B 10 MM FIELD-WIREABLE 0...230V PG9
SVS VALVE PLUG FORM B 10 MM FIELD-WIREABLE
Connectors
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲0...230 V AC/DC
without components
PG9
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 29781 |
|---|
| Operating voltage | 0...230 V AC/DC |
|---|---|
| Operating current per contact | max. 10 A |
| Sealing range (cable Ø) | 6...8 mm |
| Compression gland | PG9 |
| Plug color | Black housing, transparent flip top |
| Protection | IP65 inserted and tightened (EN 60529), with gland |
| Locking of ports | M3 (recommended torque 0.4 Nm) |
| Connection cross section | 1.5 mm² (with ferrule end) |
| Temperature range | -20...+60 °C |
|---|
| country of origin | CZ |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879187206 |
| eClass | 27279221 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-29781-0000000 7000-29781-0000000 EN_7000-29781-0000000.pdf | 303 Kbytes |
|
