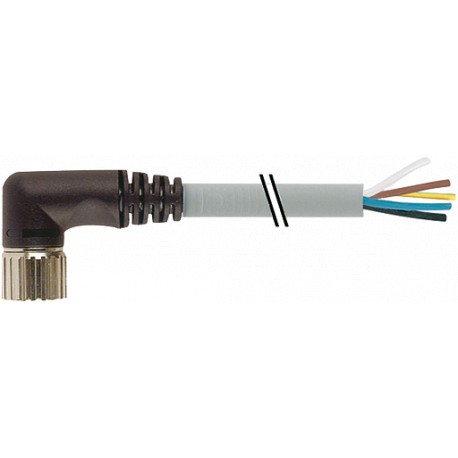

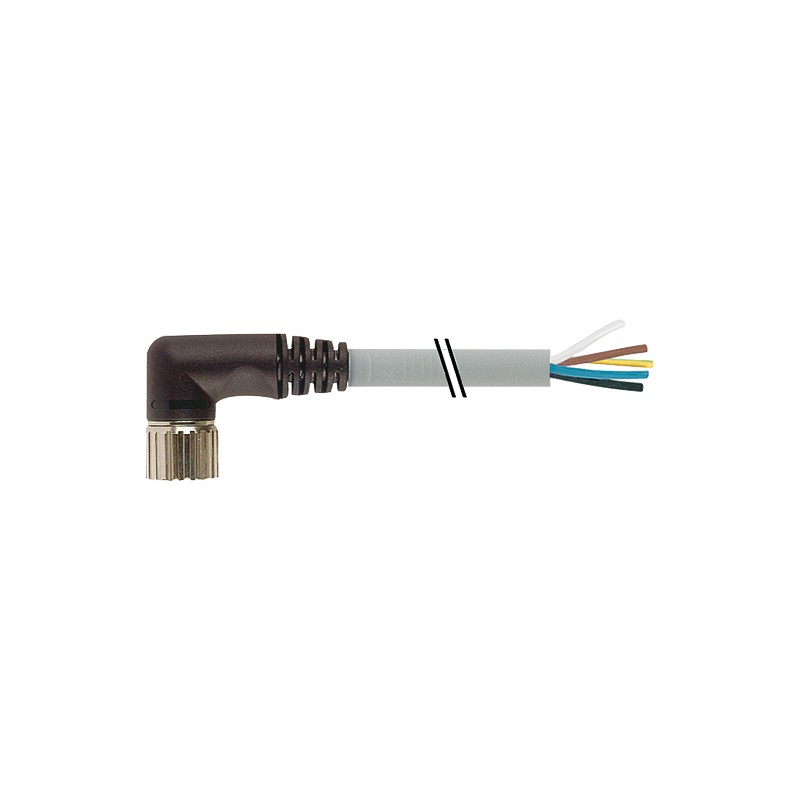

7000-23311-4482500 MURRELEKTRONIK M23 female 90° 19 pole with cable
7000-23311-4482500
MURRELEKTRONIK
M23 female 90° 19 pole with cable
M23 female 90° with cablePUR 8x0.5+3x1.0 gy UL/CSA+drag ch. 25m
M23 female 90° with cable
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲M23, 19-pole
11-pole used
for 4-way distribution boxes, 5-pole
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 23311 |
|---|
| Operating voltage | max. 125 V AC/DC |
|---|---|
| Operating current per contact | max. 7.5 A |
| Rated surge voltage | 2.5 kV |
| Material group | IEC 60664-1, category I |
| Locking of ports | Screw thread (M23×1 mm) recommended torque 2.0 Nm |
| Compression gland | M23 (SW27) |
| Protection | IP65/IP67 |
| Locking material | Brass, nickel plated |
| Material | PUR |
| suitable for corrugated tube (internal Ø) | 16 mm |
| Temperature range | -25...+85 °C, depending on cable quality |
|---|
| Cable number | 448 |
|---|---|
| No./diameter of wires | 8× 0.5 + 3× 1.0 mm² |
| Wire isolation | TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, br, bl, gnye) |
| C-track properties | 5 Mio. |
| Jacket Color | gray |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 9.1 mm ±5% |
| Bend radius (moving) | 10× outer Ø |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -40...+90 °C |
| Material (wire) | Cu wire, bare |
| Construction (core) | 64× 0.1 mm (0.5 mm²), 128× 0.1 mm (1.0 mm²); (multi-strand wire class 6) |
| Bend radius (fixed) | 5× outer Ø |
| Approval (cable) | UL (AWM-Style 20233), CSA |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879634946 |
| eClass | 27279218 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-23311-4482500 7000-23311-4482500 EN_7000-23311-4482500.pdf | 129 Kbytes |
|
| Download general catalog |
|
