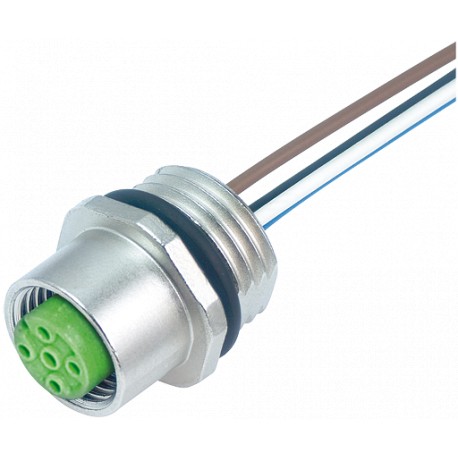

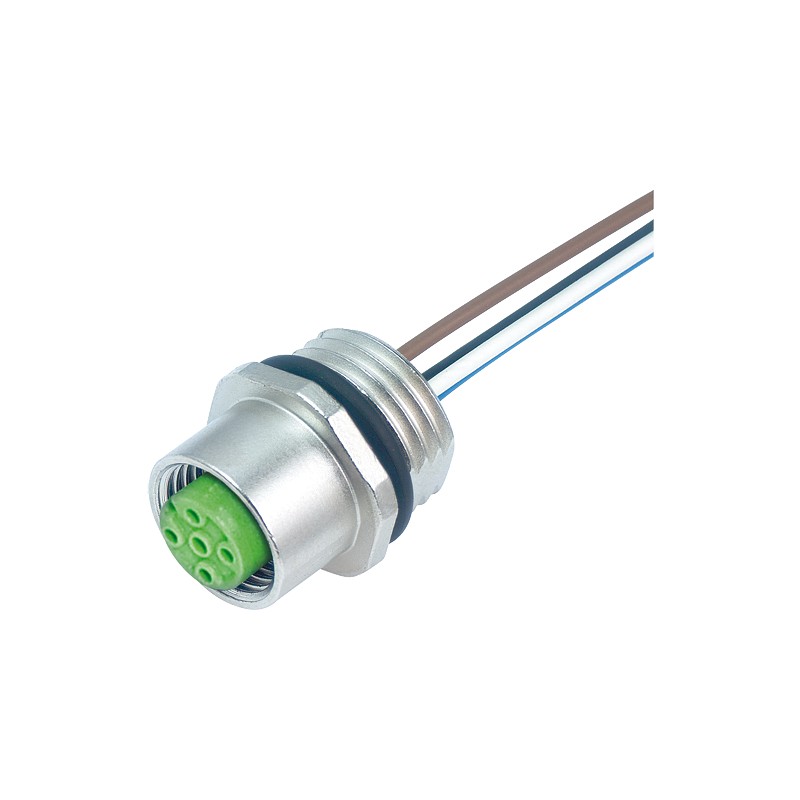

7000-20221-9300100 MURRELEKTRONIK M12 female flange plug C-cod. front mount PP 3X0.75 1m
7000-20221-9300100
MURRELEKTRONIK
M12 female flange plug C-cod. front mount PP 3X0.75 1m
M12 female recept. C-cod. frontPP-wires 3x0.75 1m
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-20221-9300100 |
| Weight: | 0.063 kg |
M12, 3-pole
Front mounting
with multi-strand wire
| Form | 20221 |
|---|
| Cable number | 930 |
|---|---|
| No./diameter of wires | 3 × 0.75 mm² |
| Wire isolation | PP (bk num, gnye) |
| Outer Ø | 1.85 mm ±5% |
| Bend radius (fixed) | 5 × outer Ø |
| Bend radius (moving) | 10 × outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -25...+80 °C |
| Operating voltage | max. 250 V AC/DC |
|---|---|
| Operating current per contact | max. 4 A |
| Rated surge voltage | 2.5 kV |
| No. of poles | 3 |
| Material group | IEC 60664-1, category I |
| Coding | C-coded |
| LED display | no |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Compression gland | M12 (SW14) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Brass, nickel plated |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879380102 |
| eClass | 27279220 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-20221-9300100 7000-20221-9300100 7000-20221-9300100_Data_Sheet_1.pdf | 154 Kbytes |
|
