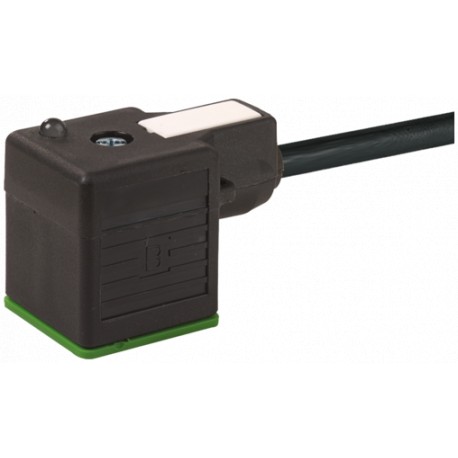

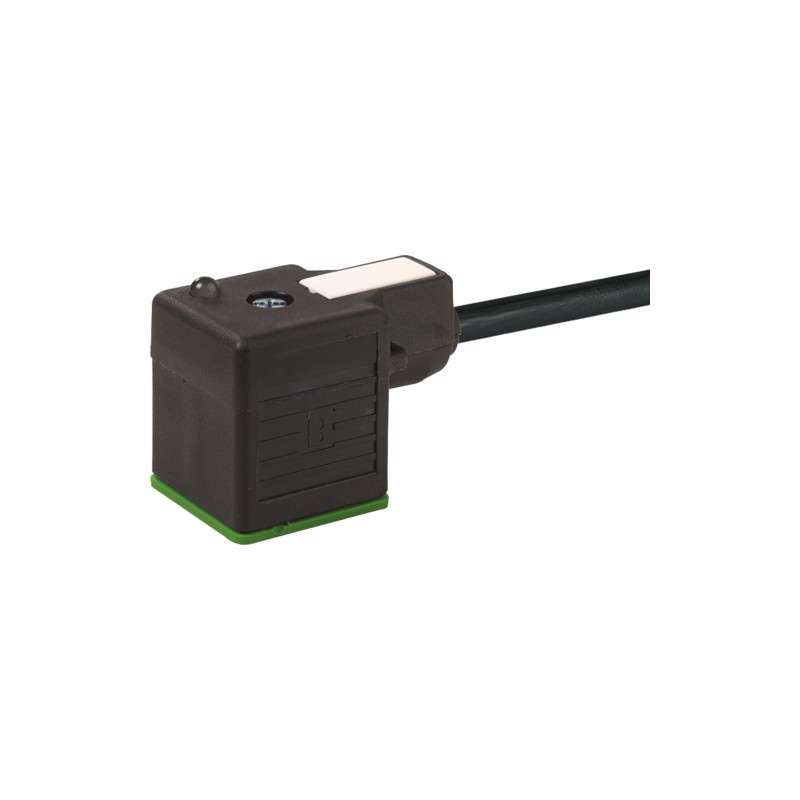

7000-18112-6172000 MURRELEKTRONIK MSUD valve plug form A 18mm with cable PVC 4x0.75 bk 20m
7000-18112-6172000
MURRELEKTRONIK
MSUD valve plug A-18mm with cablePVC 4x0.75 bk 20m
MSUD valve plug A-18mm with cable
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲MSUD
Form A (18 mm)
0...230 V AC/DC
without components
4-pole
PE opposite cable entry (180°)
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 18112 |
|---|
| Operating voltage | max. 230 V AC/DC |
|---|---|
| Rated surge voltage | 4.0 kV |
| Operating current per contact | max. 10 A |
| Material group | IEC 60664-1, category I |
| Locking of ports | M3 (recommended torque 0.4 Nm) |
| Protection | IP67 |
| Material | PBT |
| Locking material | Steel (galvanized) |
| Housing | Black plastic (gray on request) |
| Material (gasket) | PUR |
|---|---|
| Pollution Degree | 3 |
| Temperature range | -25...+85 °C, depending on cable quality |
| No./diameter of wires | 4× 0.75 mm² |
|---|---|
| Wire isolation | PVC (bk num, gnye) |
| Outer Ø | 6.5 mm ±5% |
| Cable identification | 617 |
| Cable Type | 1 (P'VC) |
| Approval (cable) | CE conform |
| Cable weight [g/m] | 77,66 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single wire Ø (core) | 0.2 mm |
| Construction (core) | 24× 0.2 mm (multi-strand wire class 5) |
| Diameter (core) | 4× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire isolation) | PVC |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore hardness (wire isolation) | 43 ±5 D |
| Wire-Ø incl. isolation | 1.8 mm ±5% |
| Color/numbering of wires | bk numbered, gnye longitudinally striped |
| Stranding combination | 4 wires twisted |
| Shield | no |
| Material (jacket) | PVC |
| Material property (jacket) | CFC-, cadmium-, silicone- and lead-free |
| Shore hardness (jacket) | 80 ±5 A |
| Outer-Ø (jacket) | 6.5 mm ±5% |
| Color (jacket) | black |
| Jacket Color | black |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Nominal voltage | 300/500 V AC |
| Test voltage | 3000 V AC |
| Current load capacity | to DIN VDE 0298-4 |
| Temperature range (fixed) | -30...+70 °C |
| Temperature range (fixed) | -30...+70 °C |
| Temperature range (mobile) | -5...+70 °C |
| Temperature range (mobile) | -5...+70 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| Material (jacket) | PVC |
| Product article number of manufacturer | 7000-18112-6172000 |
|---|---|
| Cable length | 20 m |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-18112-6172000 7000-18112-6172000 EN_7000-18112-6172000.pdf | 110 Kbytes |
|
| Download general catalog |
|
