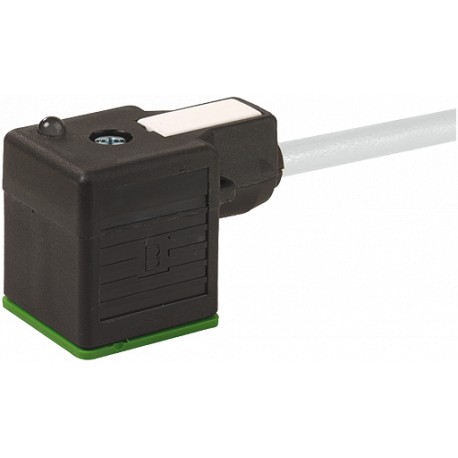

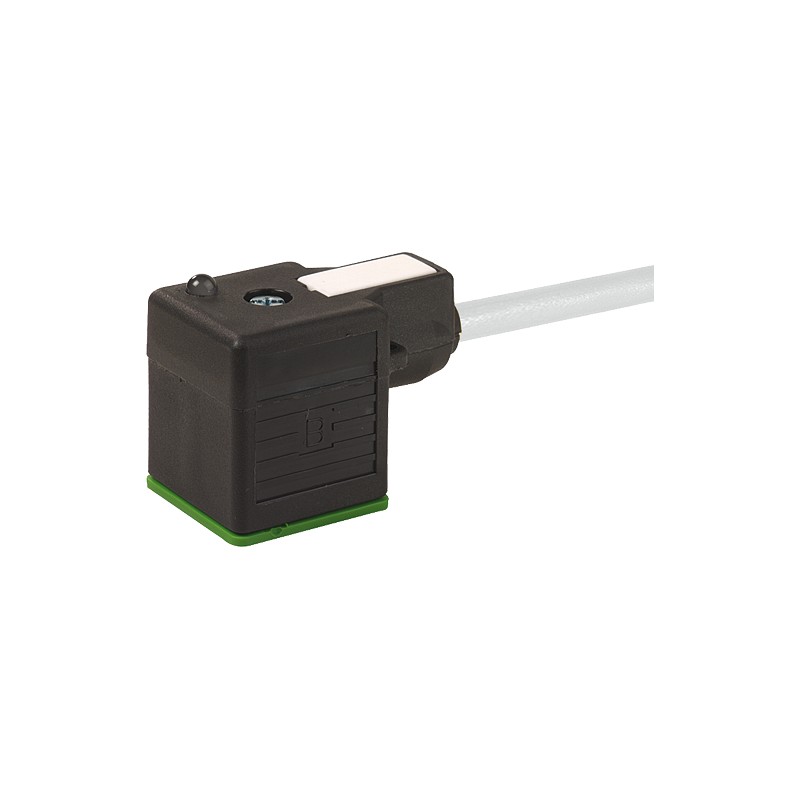

7000-18085-4162000 MURRELEKTRONIK MSUD valve plug form A 18mm with cable 2 pole PVC 2x0,5 shielded gray, 20m
7000-18085-4162000
MURRELEKTRONIK
MSUD valve plug form A 18mm with cable 2 pole PVC 2x0,5 shielded gray, 20m
MSUD valve plug A-18mm with cablePVC 2x0.5 shielded gy 20m
MSUD VALVE PLUG FORM A 18MM , 2P.
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Form A (18 mm)
0...230 V AC/DC
without components
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 18085 |
|---|
| Operating voltage | max. 230 V AC/DC |
|---|---|
| Operating current per contact | max. 4 A |
| Locking of ports | M3 (recommended torque 0.4 Nm) |
| Housing | Black plastic (gray on request) |
| Protection | IP66K, IP67 inserted and tightened (EN 60529) |
| Temperature range | -25...+85 °C, depending on cable quality |
|---|
| Cable number | 416 |
|---|---|
| No./diameter of wires | 2× 0.5 mm² |
| Wire isolation | PVC (br, wh) |
| Jacket Color | gray |
| Material (jacket) | PVC |
| Outer Ø | 5.9 mm ±5% |
| Bend radius (moving) | 15× outer Ø |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Cable identification | 416 |
| Approval (cable) | CE conform |
| Cable weight [g/m] | 46,20 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 39 Ω/km (20 °C) |
| Single wire Ø (core) | 0.2 mm |
| Construction (core) | 16× 0.2 mm (multi-strand wire class 5) |
| Diameter (core) | 2× 0.5 mm² |
| AWG | similar to AWG 20 |
| Material (wire isolation) | PVC |
| Color/numbering of wires | br, wh |
| Shield | yes |
| optical shield cover | min. 85% |
| Material (jacket) | PVC |
| Outer-Ø (jacket) | 5.9 mm ±5% |
| Color (jacket) | gray |
| Nominal voltage | 500 V AC |
| Test voltage | 1500 V AC |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Bend radius (moving) | 15× outer Ø |
| country of origin | CZ |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879326476 |
| eClass | 27279218 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-18085-4162000 7000-18085-4162000 EN_7000-18085-4162000.pdf | 233 Kbytes |
|
| Download general catalog |
|
