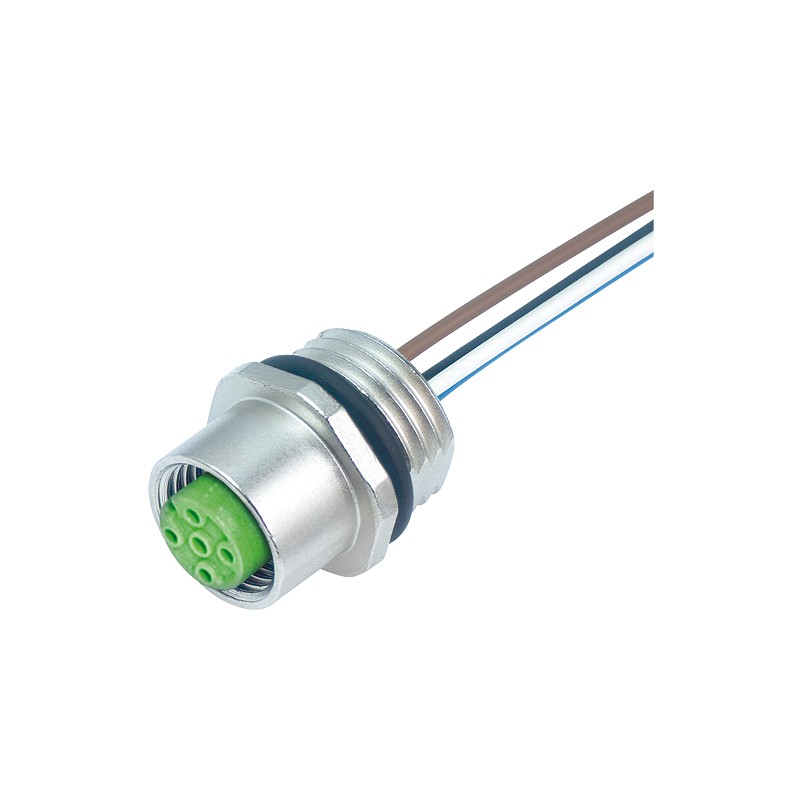

7000-17181-9820050 MURRELEKTRONIK M12 female flange plug A-cod. PP 8x0,25 0.5m
7000-17181-9820050
MURRELEKTRONIK
M12 female flange plug A-cod. PP 8x0,25 0.5m
M12 female recept. A-cod. frontTPE-wires 8x0.25 0.5m
M12 FEMALE FLANGE PLUG A CODED
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲M12, 8-pole
Front mounting
with multi-strand wire
| Form | 17181 |
|---|
| Operating voltage | 30 V AC/DC |
|---|---|
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 2 A |
| Material group | IEC 60664-1, category I |
| No. of poles | 8 |
| Coding | A-coded |
| LED display | no |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Compression gland | M12 (SW14) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Zinc die casting, matte nickel plated |
| Pollution Degree | 3 |
|---|
| Cable number | 982 |
|---|---|
| No./diameter of wires | 8× 0.25 mm² |
| Wire isolation | PP (br, wh, bl, bk, gr, pk, vi, or) |
| Outer Ø | 1.25 mm ±5% |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 15× outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+80 °C |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879307925 |
| eClass | 27279220 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-17181-9820050 7000-17181-9820050 EN_7000-17181-9820050.pdf | 199 Kbytes |
|
