7000-17161-9030050
MURRELEKTRONIK
1

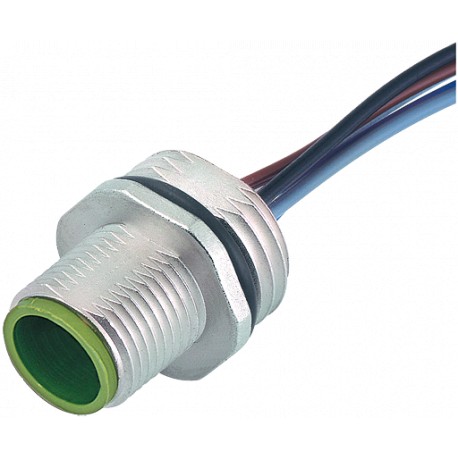

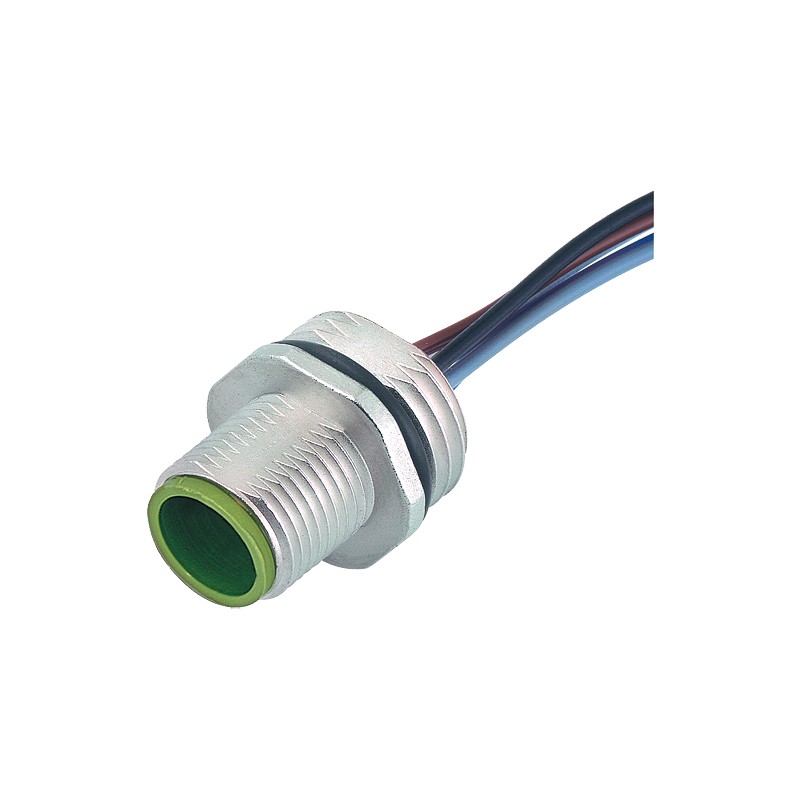

M12 male flange plug A-cod. front mount PVC 8x0,25 0.5m
M12 MALE FLANGE PLUG A CODED FRONT MOUNT PVC-wires 8x0,25 0.5m
M12 MALE FLANGE PLUG A CODED FRONT MOUNT
Connectors with cable
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Form | 17161 |
---|
Operating voltage | max. 30 V AC/DC |
---|---|
Rated surge voltage | 0.8 kV |
Operating current per contact | max. 2 A |
Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
Protection | IP67 inserted and tightened (EN 60529) |
Protection NEMA | 3, 4, 6P (UL 50E) |
Temperature range | -25...+85 °C |
---|
Cable number | 903 |
---|---|
No./diameter of wires | 8× 0.25 mm² |
Wire isolation | PVC (bl, wh, gn, ye, gr, pk, rd, br) |
Outer Ø | 1.15 mm ±5% |
Bend radius (fixed) | 12× outer Ø |
Temperature range (fixed) | -40...+105 °C |
Temperature range (mobile) | -5...+105 °C |
country of origin | DE |
---|---|
customs tariff number | 85444290 |
EAN | 4048879294843 |
eClass | 27279220 |
Packaging unit | 1 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes | |
7000-17161-9030050 7000-17161-9030050 EN_7000-17161-9030050.pdf | 195 Kbytes | |
Download general catalog |
