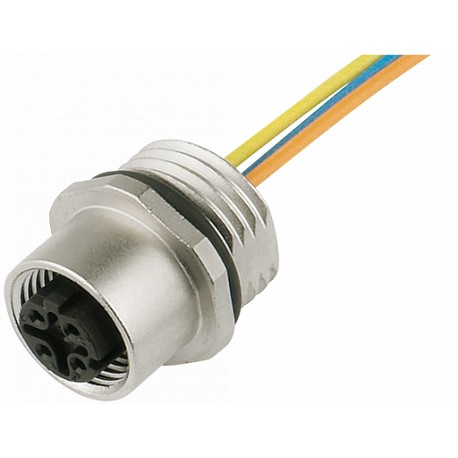

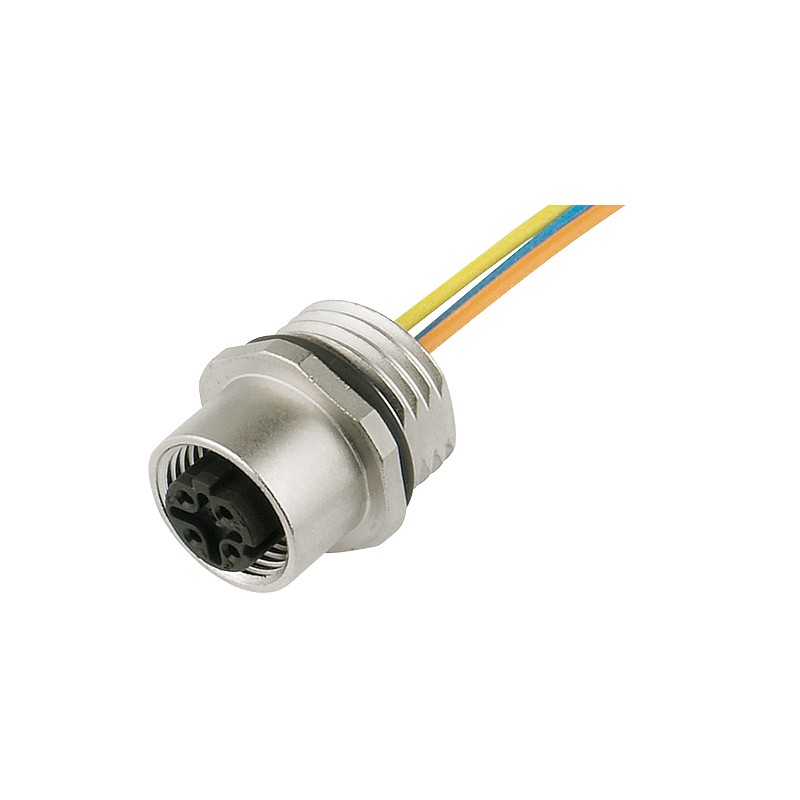

7000-14501-9760020 MURRELEKTRONIK M12 female receptacle D-cod. front mount PE 4x0.34 0,2m
7000-14501-9760020
MURRELEKTRONIK
M12 female receptacle D-cod. front mount PE 4x0.34 0,2m
Connectors with cable
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲wires PE 4x0.34 0,2m
| Art.No.: | 7000-14501-9760020 |
| Weight: | 0.015 kg |
Flange female
M12, 4-pole
D-coded
shielded
Front mounting
with multi-strand wire
M12, 4-pole
D-coded
shielded
Front mounting
with multi-strand wire
Form
| Form | 14501 |
|---|
Cables
| Cable number | 976 |
|---|---|
| No./diameter of wires | 4 × 0.34 mm² |
| Wire isolation | PUR (wh, ye, bl, or) |
| Outer Ø | 1.3 mm ±5% |
| Bend radius (fixed) | 5 × outer Ø |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -25...+90 °C |
Technical Data
| Operating voltage | max. 250 V AC/DC |
|---|---|
| Operating current per contact | max. 4 A |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Transfer rate | up to 100 Mbit/s full duplex |
| Coding | D-coded |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Protection | IP66K, IP67 inserted and tightened (EN 60529) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Zinc die casting, matte nickel plated |
Commercial data
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879197502 |
| eClass | 27279220 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes |
|
| 7000-14501-9760020 7000-14501-9760020 7000-14501-9760020_Data_Sheet_1.pdf | 184 Kbytes |
|
| Download general catalog |
|
