7000-14261-7990200 MURRELEKTRONIK M12 MALE 0° SHIELD.B CODED ,INTERBUS PUR 3x2x0.25 shielded vt 2.0
7000-14261-7990200
MURRELEKTRONIK

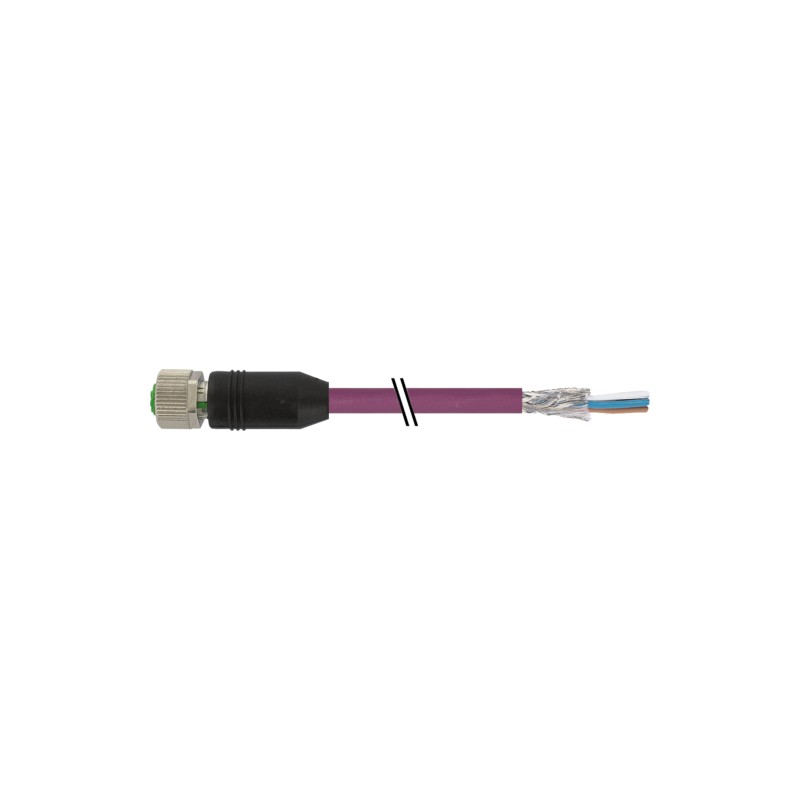

M12 female 0° B-cod. with cable shieldedPUR 3x2x0.25 shielded vt 2m
M12 female 0° B-cod. with cable shielded
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Interbus
Female straight
M12, 5-pole
B-coded
shielded
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 14261 |
|---|
| Operating voltage | max. 60 V AC/DC |
|---|---|
| Rated surge voltage | 1.5 kV |
| Operating current per contact | max. 4 A |
| No. of poles | 5 |
| Material group | IEC 60664-1, category I |
| Coding | B-coded |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| Locking material | Zinc die casting, matte nickel plated |
| Compression gland | M12 (SW13) |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C, depending on cable quality |
| No./diameter of wires | 3× (2× AWG24) |
|---|---|
| Wire isolation | PE (whbr, grpk, gnye) |
| C-track properties | 2 Mio. |
| Outer Ø | 7.7 mm ±5% |
| Cable identification | 799 |
| Approval (cable) | Interbus (DIN 19258/EN50254/IEC 61158 conform) |
| Cable weight [g/m] | 76,49 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 96 Ω/km (20°C) |
| Single wire Ø (core) | 0.1 mm |
| Construction (core) | 32× 0.1 mm (multi-strand wire class 6) |
| Diameter (core) | 3× (2× AWG24) |
| AWG | similar to AWG 24 |
| Material (wire isolation) | PE |
| Shore hardness (wire isolation) | 55 ±5 D |
| Wire-Ø incl. isolation | 1.4 mm ±5% |
| Color/numbering of wires | (wh, br) + (gr, pk) + (gn, ye) |
| Shield | yes |
| Shield (Type) | Copper braid |
| optical shield cover | min. 85% |
| Material (jacket) | PUR |
| Material property (jacket) | CFC-, halogen- and cadmium-free, matt, low-adhesion, machine easy to process, abrasion-resistant |
| Shore hardness (jacket) | 85 ±5 A |
| Outer-Ø (jacket) | 7.7 mm ±5% |
| Color (jacket) | violet |
| Jacket Color | violet |
| chemical resistance | good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803/VDE 0249) |
| Nominal voltage | 250 V AC |
| Test voltage | 1500 V (wire/wire); 1000 V (wire/shield) |
| Temperature range (fixed) | -40...+70 °C |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Temperature range (mobile) | -30...+70 °C |
| Bend radius (fixed) | 6× outer Ø |
| Bend radius (moving) | 15× outer Ø |
| Bend radius (moving) | 12× outer Ø |
| No. of bending cycles (C-track) | max. 2 Mio. (25 °C) |
| Travel speed (C-track) | max. 3 m/s |
| Acceleration (C-track) | max. 3 m/s² |
| Material (jacket) | PUR |
| Product article number of manufacturer | 7000-14261-7990200 |
|---|---|
| Cable length | 2 m |
