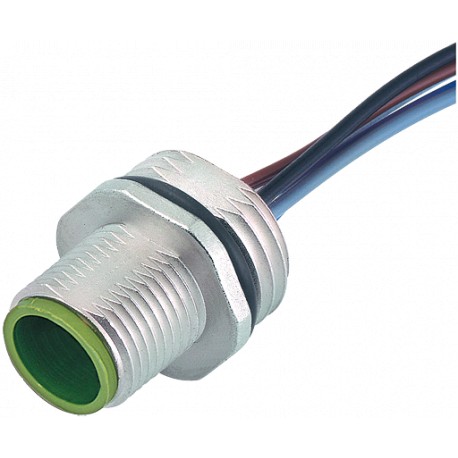

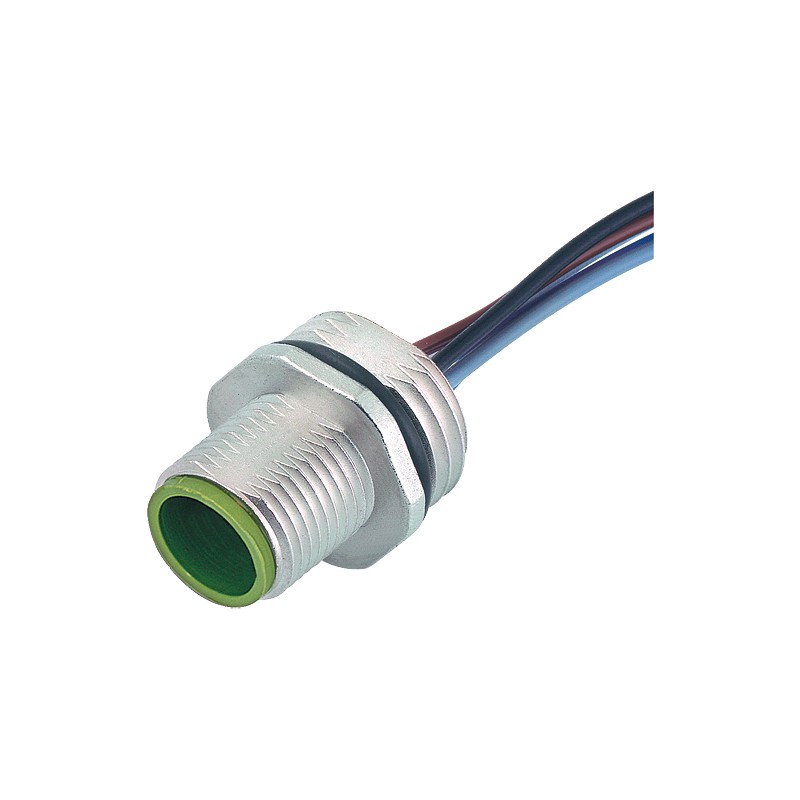

7000-14101-9740020 MURRELEKTRONIK M12 male receptacle B-cod. front mount PP 4x0.34 0,2m
7000-14101-9740020
MURRELEKTRONIK
M12 male receptacle B-cod. front mount PP 4x0.34 0,2m
M12 male recept. B-cod. frontPP-wires 4x0.34 0.2m
M12 male receptacle B-cod. front mount
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲M12, 4-pole
B-coded
Front mounting
with multi-strand wire
| Form | 14101 |
|---|
| Operating voltage | max. 250 V AC/DC |
|---|---|
| Rated surge voltage | 2.5 kV |
| Operating current per contact | max. 4 A |
| No. of poles | 4 |
| Material group | IEC 60664-1, category I |
| Coding | B-coded |
| LED display | no |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Compression gland | M12 (SW14) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Zinc die casting, matte nickel plated |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+80 °C |
| Cable number | 974 |
|---|---|
| No./diameter of wires | 4× 0.34 mm² |
| Wire isolation | PP (br, wh, bl, bk) |
| Outer Ø | 1.25 mm ±5% |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -25...+80 °C |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879293563 |
| eClass | 27279221 |
| Packaging unit | 1 |
