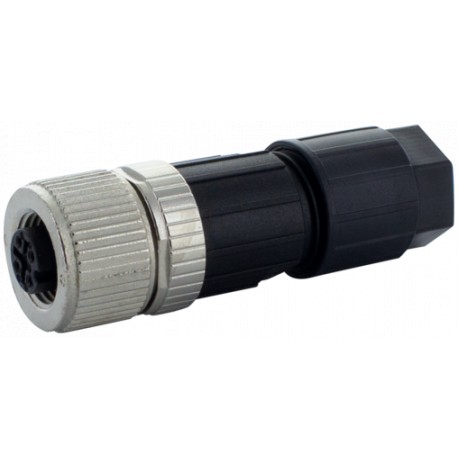

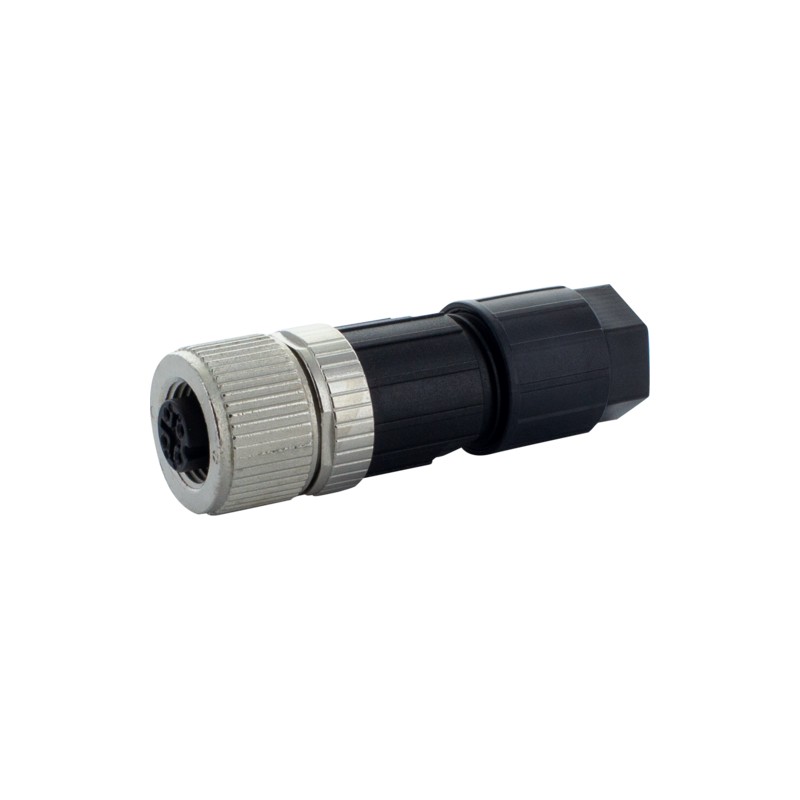

7000-13941-0000000 MURRELEKTRONIK M12 female 0° A-cod. Push-Lock 5-pol., 0,08 0,75mm², 4 8mm
7000-13941-0000000
MURRELEKTRONIK
M12 female 0° A-cod. Push-Lock 5-pol., 0,08 - 0,75mm², 4 - 8mm
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-13941-0000000 |
| Alternative product: | |
| Weight: | 0.022 kg |
| Country of origin: | DE |
| Model designation: | MSBL0-U-Push-Lock |
Technical Data
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Gender | female |
| Cable outlet | straight |
| Coding | A |
| Material contact | Bronze |
| No. of poles | 5 |
| Degree of protection (EN IEC 60529) | IP65, IP67 |
| Mounting method | field-wireable |
|---|---|
| Family construction form | Push-Lock spring clamp connection |
| Operating voltage AC | 48 V |
|---|---|
| Operating voltage DC | 60 V |
| Operating voltage AC max. (UL-listed) | 250 V |
| Current operating per contact (UL) | 4 A |
| Operating current per contact max. (40°C) | 4 A |
| Status indication LED | no |
|---|
| Cross section connection with wire end ferrule min. | 0,08 mm² |
|---|---|
| Cross section connection with wire end ferrule max. | 0,5 mm² |
| Cross section connection without wire end ferrule min. | 0,14 mm² |
| Cross section connection without wire end ferrule max. | 0,75 mm² |
| Cross section connection with wire end ferrule AWG min. | 28 AWG |
| Cross section connection with wire end ferrule AWG max. | 20 AWG |
| Cross section connection without wire end ferrule AWG min. | 26 AWG |
| Cross section connection without wire end ferrule AWG max. | 18 AWG |
| Connection information | Push-Lock spring clamp connection |
|---|---|
| Width across flats | SW18 |
| Mating cycles min. | 100 |
| Coding | A |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Insulation resistance min. | 100 MΩ |
| Overvoltage category (EN 60950-1) | II |
| Coating contact | gold plated |
|---|---|
| Combustibility class (UL94) | V-0 |
| Material gasket | NBR |
| Material housing | PA |
| Mounting method | inserted, screwed, Shaking protection |
|---|---|
| Clamping range min. | 4 mm |
| Clamping range max. | 8 mm |
| Operating temperature min. | -40 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention:Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Product standard | DIN EN 61076-2-101 (M12) |
|---|
