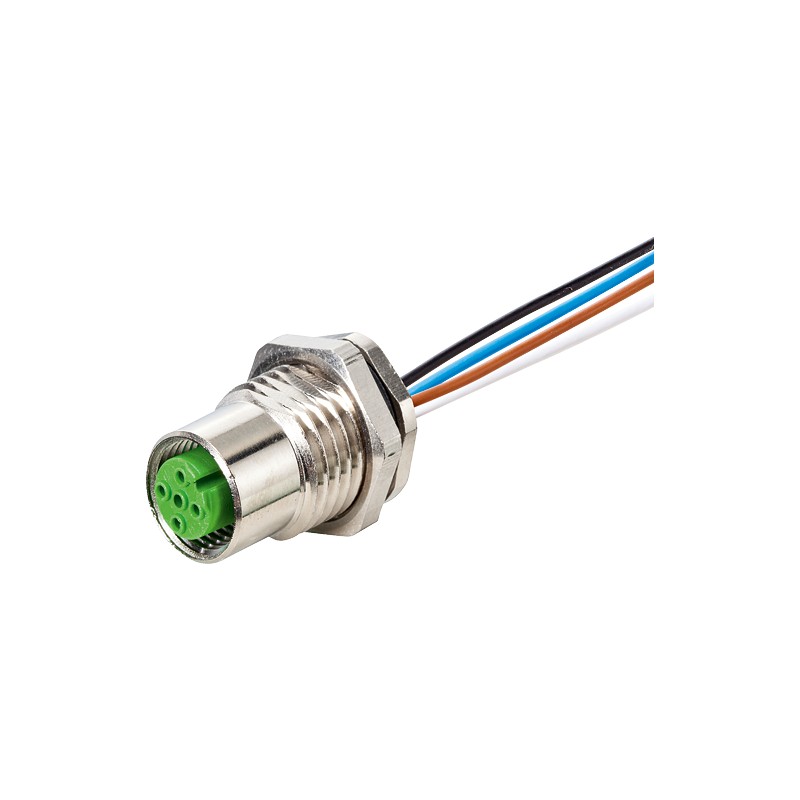

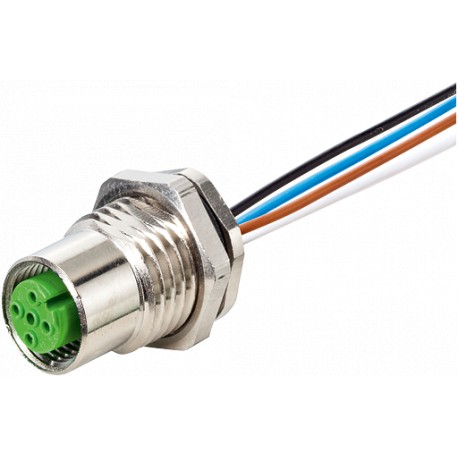

7000-13565-9720050 MURRELEKTRONIK M12 female receptacle A-cod. rear mount PP 5X0.34 0.5m
7000-13565-9720050
MURRELEKTRONIK
M12 female receptacle A-cod. rear mount PP 5X0.34 0.5m
M12 female receptacle A-cod. rear mount
Connectors with cable
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Flange female
M12, 5-pole
Rear mounting
with multi-strand wire
M12, 5-pole
Rear mounting
with multi-strand wire
Form
| Form | 13565 |
|---|
Technical Data
| Operating voltage | max. 125 V AC/DC |
|---|---|
| Rated surge voltage | 1.5 kV |
| Operating current per contact | max. 4 A |
| Material group | IEC 60664-1, category I |
| Coding | A-coded |
| LED display | no |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Compression gland | M12 (SW14) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Material | Brass, nickel plated |
| Locking material | Brass, nickel plated |
| suitable for corrugated tube (internal Ø) | without |
General data
| Standards | DIN EN 61076-2-101 (M12) |
|---|---|
| Mounting method | inserted, tightened |
| Material (contact) | Copper alloy |
| Material (contact surface) | Au |
| Material (gasket) | FKM |
| Pollution Degree | 3 |
| Temperature range | -25...+85 °C |
Cables
| Cable number | 972 |
|---|---|
| No./diameter of wires | 5× 0.34 mm² |
| Wire isolation | PUR (br, wh, bl, bk, gr) |
| Outer Ø | 1.3 mm ±5% |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -25...+90 °C |
| Material (wire) | Cu wire, tin plated |
| AWG | max. 58 Ω/km (20 °C) |
| Nominal voltage | 300 V AC |
| Test voltage | 1500 V AC |
| Bend radius (fixed) | 5× outer Ø |
Commercial data
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879330268 |
| eClass | 27279220 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes |
|
| 7000-13565-9720050 7000-13565-9720050 EN_7000-13565-9720050.pdf | 199 Kbytes |
|
