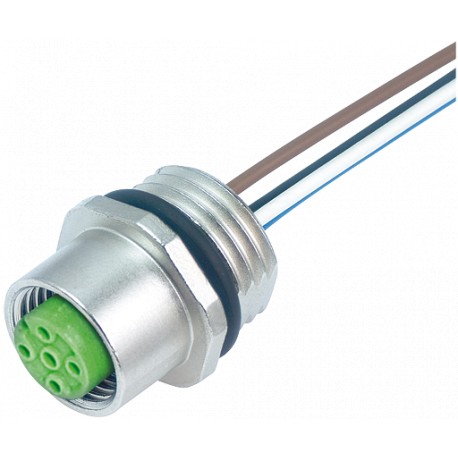

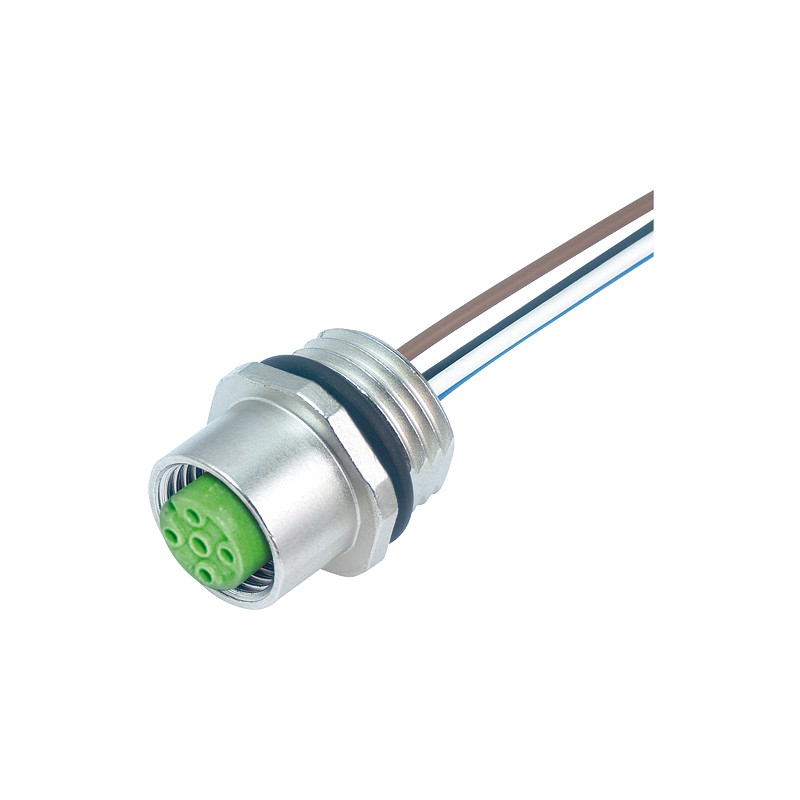

7000-13561-9750200 MURRELEKTRONIK M12 female flange plug A-cod. front mount PP 5X0.34 2m
7000-13561-9750200
MURRELEKTRONIK
M12 female flange plug A-cod. front mount PP 5X0.34 2m
M12 female recept. A-cod. frontPP-wires 5x0.34 2m
M12 female receptacle A-cod. front mount
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲M12, 5-pole
Front mounting
with multi-strand wire
| Form | 13561 |
|---|
| Operating voltage | max. 125 V AC/DC |
|---|---|
| Rated surge voltage | 1.5 kV |
| Operating current per contact | max. 4 A |
| No. of poles | 5 |
| Material group | IEC 60664-1, category I |
| Coding | A-coded |
| LED display | no |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Compression gland | M12 (SW14) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Material | Zinc die casting, brass-plated |
| Locking material | Zinc die casting, brass-plated |
| Standards | DIN EN 61076-2-101 (M12) |
|---|---|
| Material (contact) | Copper alloy |
| Material (contact surface) | Au |
| Material (gasket) | FKM |
| Pollution Degree | 3 |
| Temperature range | -25...+85 °C |
| Cable number | 975 |
|---|---|
| No./diameter of wires | 5× 0.34 mm² |
| Wire isolation | PUR (br, wh, bl, bk, gnye) |
| Outer Ø | 1.3 mm ±5% |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -25...+90 °C |
| Material (wire) | Cu wire, tin plated |
| Resistor (core) | max. 58 Ω/km (20 °C) |
| Nominal voltage | 300 V AC |
| Test voltage | 1500 V AC |
| Bend radius (fixed) | 5× outer Ø |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879482912 |
| eClass | 27279220 |
| Packaging unit | 1 |
