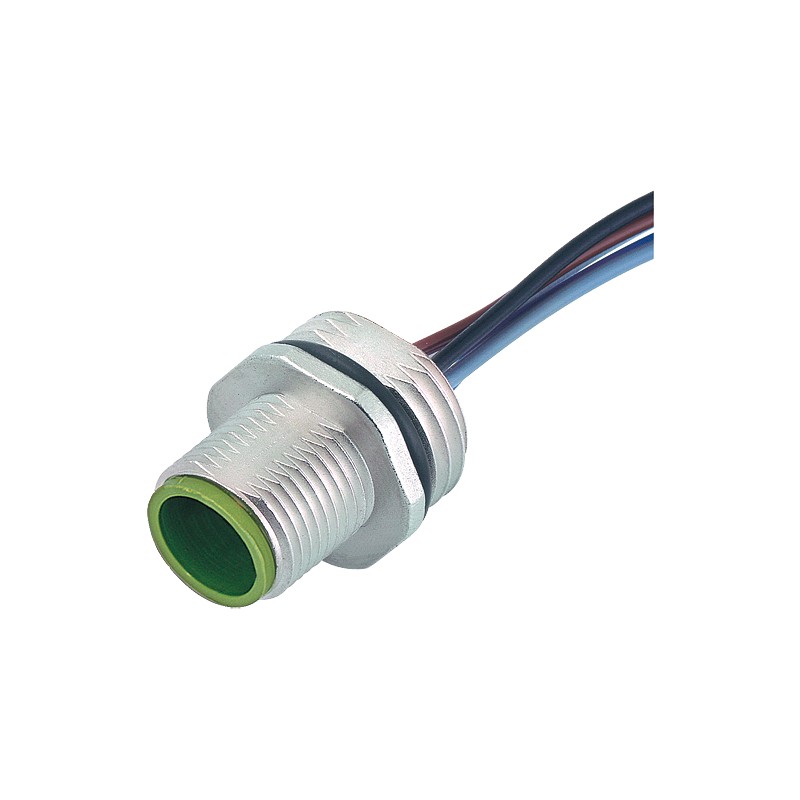

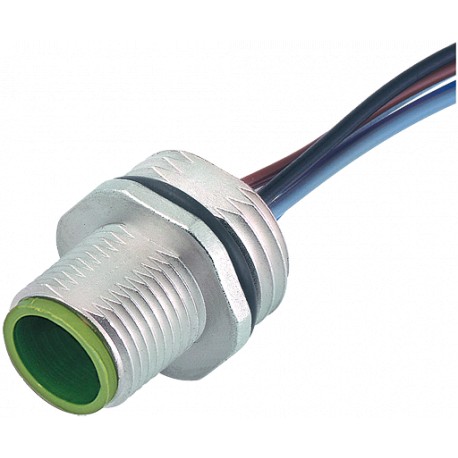

7000-13501-9710100 MURRELEKTRONIK M12 male receptacle A-cod. front mount PP 4x0.34 1m
7000-13501-9710100
MURRELEKTRONIK
M12 male receptacle A-cod. front mount PP 4x0.34 1m
M12 male recept. A-cod. frontPP-wires 4x0.34 1m
M12 male receptacle A-cod. front mount
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲M12, 4-pole
Front mounting
with multi-strand wire
| Form | 13501 |
|---|
| Operating voltage | max. 250 V AC/DC |
|---|---|
| Rated surge voltage | 2.5 kV |
| Operating current per contact | max. 4 A |
| Material group | IEC 60664-1, category I |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Compression gland | M12 (SW14) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Zinc die casting, matte nickel plated |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C |
| Cable number | 971 |
|---|---|
| No./diameter of wires | 4× 0.34 mm² |
| Wire isolation | PUR |
| Outer Ø | 1.3 mm ±5% |
| Bend radius (fixed) | 5× outer Ø |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -25...+90 °C |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879294584 |
| eClass | 27279220 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-13501-9710100 7000-13501-9710100 EN_7000-13501-9710100.pdf | 204 Kbytes |
|
| Download general catalog |
|
