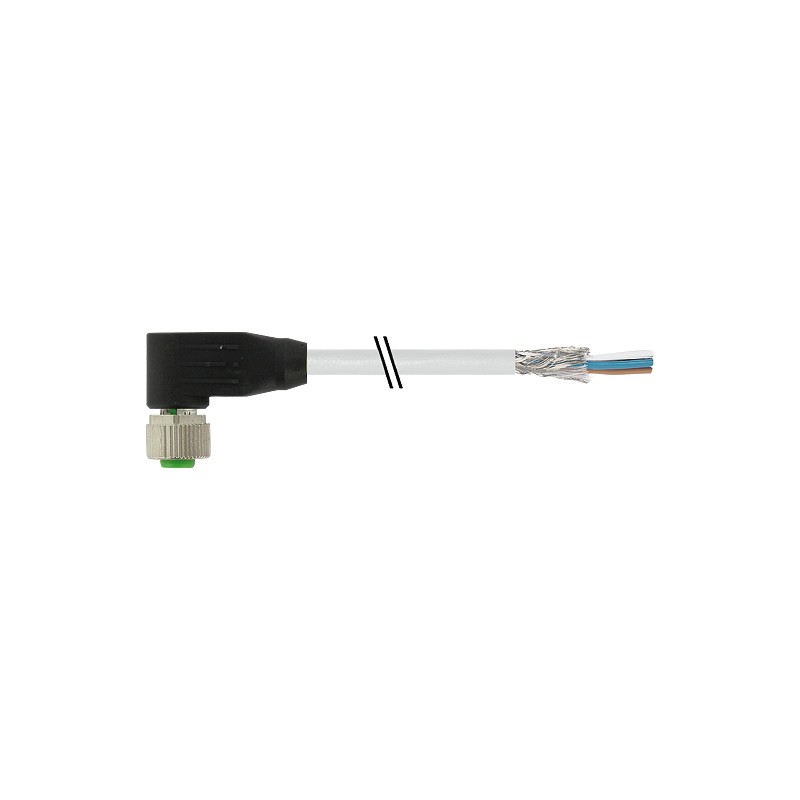

7000-13281-3473000 MURRELEKTRONIK M12 female 90° with cable PVC 5x0.34 shielded gray 30m
7000-13281-3473000
MURRELEKTRONIK
M12 female 90° with cable PVC 5x0.34 shielded gray 30m
M12 female 90° shielded with cable
Connectors with cable
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Female 90°
M12, 5-pole
shielded
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
M12, 5-pole
shielded
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Form
| Form | 13281 |
|---|
Technical Data
| Operating voltage | max. 60 V AC/DC |
|---|---|
| Operating voltage (only UL listed) | 30 V AC/DC |
| Rated surge voltage | 1.5 kV |
| Operating current per contact | max. 4 A |
| No. of poles | 5 |
| Material group | IEC 60664-1, category I |
| Coding | A-coded |
| LED display | no |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Compression gland | M12 (SW13) |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| Locking material | Zinc die casting, matte nickel plated |
| Material | PUR |
| suitable for corrugated tube (internal Ø) | without |
General data
| Standards | DIN EN 61076-2-101 (M12) |
|---|---|
| Mounting method | inserted, tightened |
| Material (contact) | Copper alloy |
| Material (contact surface) | Au |
| Material (gasket) | FKM |
| Pollution Degree | 3 |
| Stripping length (jacket) | 20 mm |
| Temperature range | -25...+85 °C, depending on cable quality |
Cables
| Cable number | 347 |
|---|---|
| No./diameter of wires | 5× 0.34 mm² |
| Wire isolation | PVC (br, wh, bl, bk, gr) |
| Jacket Color | gray |
| Material (jacket) | PVC |
| Outer Ø | 5.9 mm ±5% |
| Bend radius (fixed) | 10× outer Ø |
| Bend radius (moving) | 15× outer Ø |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Shield | yes |
| Color (jacket) | gray |
| Approval (cable) | CE conform |
Commercial data
| country of origin | CZ |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879622875 |
| eClass | 27279218 |
| Packaging unit | 1 |
* only for products with UL/CSA approved cable
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes |
|
| 7000-13281-3473000 7000-13281-3473000 EN_7000-13281-3473000.pdf | 198 Kbytes |
|
| Download general catalog |
|
