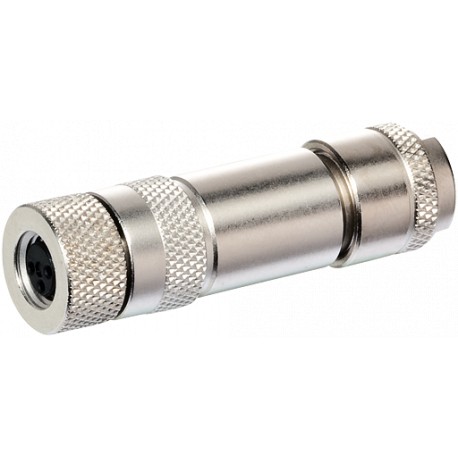

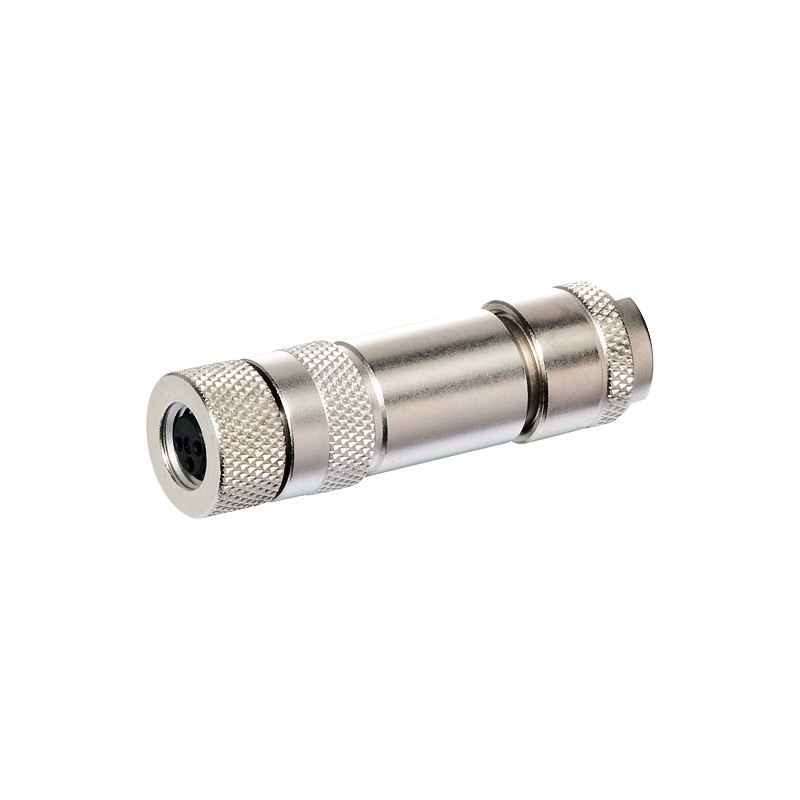

7000-08671-0000000 MURRELEKTRONIK M8 female 0° wireable screw terminals shielded 4-pol. 0,14…0.5mm²
7000-08671-0000000
MURRELEKTRONIK
M8 female 0° wireable screw terminals shielded 4-pol. 0,14…0.5mm²
M8 female 0° A-cod. screw terminal4-pol., 0,14 - 0.5mm², 4 - 5,5mm, shielded
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-08671-0000000 |
| Weight: | 0.053 kg |
M8, 4-pole
shielded
Screw terminals
Connection cross section: 0.14...0.5 mm²
| Form | 08671 |
|---|
| Operating voltage | max. 30 V AC/DC |
|---|---|
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 4 A |
| Material group | IEC 60664-1, category III |
| Connection cross section | 0.14...0.5 mm² |
| Sealing range (cable Ø) | 3.5...5.5 mm |
| Locking of ports | Screw thread M8 × 1 mm (recommended torque 0.4 Nm) self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| Locking material | Brass, nickel plated |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C |
| Dimensions H × W × D | 49×14×14 mm |
| country of origin | DE |
|---|---|
| customs tariff number | 85369010 |
| EAN | 4048879224468 |
| eClass | 27279221 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-08671-0000000 7000-08671-0000000 7000-08671-0000000_Data_Sheet_1.pdf | 165 Kbytes |
|
| Download general catalog |
|
