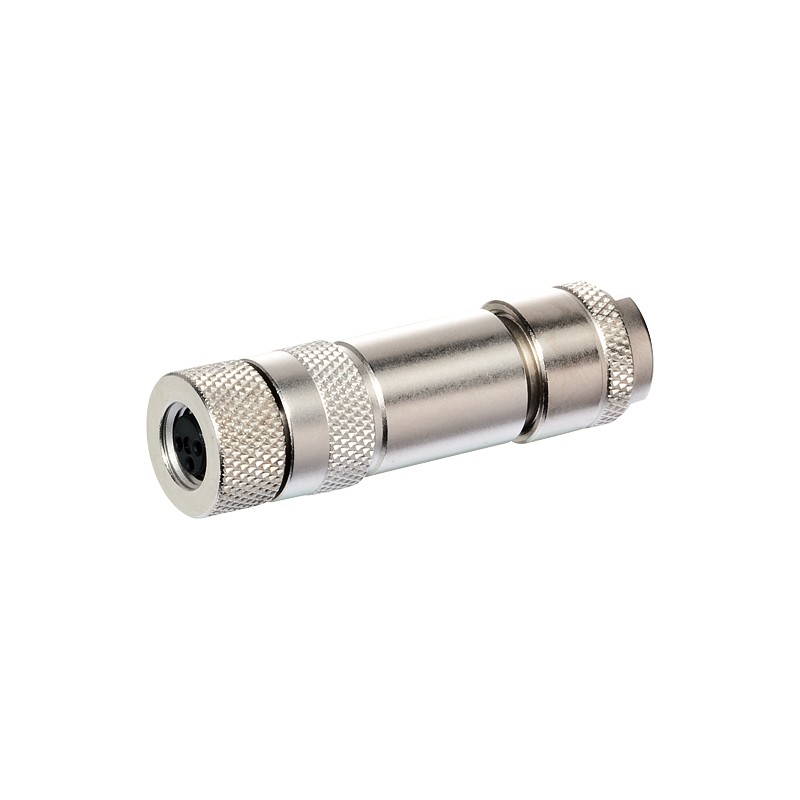

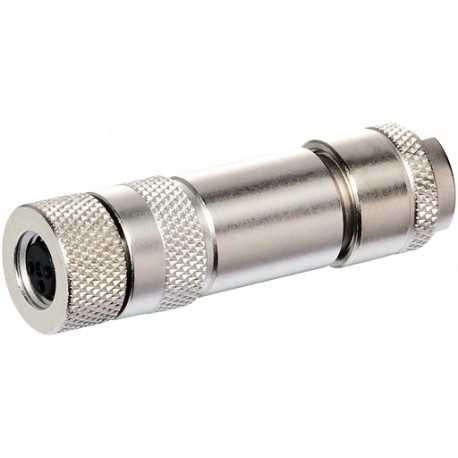

7000-08661-0000000 MURRELEKTRONIK M8 female 0° wireable screw terminals shielded 3-pol. 0,14…0.5mm²
7000-08661-0000000
MURRELEKTRONIK
M8 female 0° wireable screw terminals shielded 3-pol. 0,14…0.5mm²
M8 female 0° A-cod. screw terminal3-pol., 0,14 - 0.5mm², 4 - 5,5mm, shielded
M8 FEMALE 0° SHIELDED WIREABLE SCREW TERM.
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲M8, 3-pole
shielded
Screw terminals
Connection cross section: 0.14...0.5 mm²
| Form | 08661 |
|---|
| Operating voltage | max. 60 V |
|---|---|
| Rated surge voltage | 1.5 kV |
| Operating current per contact | max. 4 A |
| Material group | III |
| Connection cross section | 0.14...0.5 mm² |
| Sealing range (cable Ø) | 4...5.5 mm |
| Protection | IP67 inserted and tightened (EN 60529) |
| Over voltage category | III |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -40...+85 °C |
| Material (contact) | Brass, gold plated |
| Dimensions H×W×D | 49×14×14 mm |
| country of origin | DE |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879224475 |
| eClass | 27279221 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-08661-0000000 7000-08661-0000000 EN_7000-08661-0000000.pdf | 161 Kbytes |
|
| Download general catalog |
|
