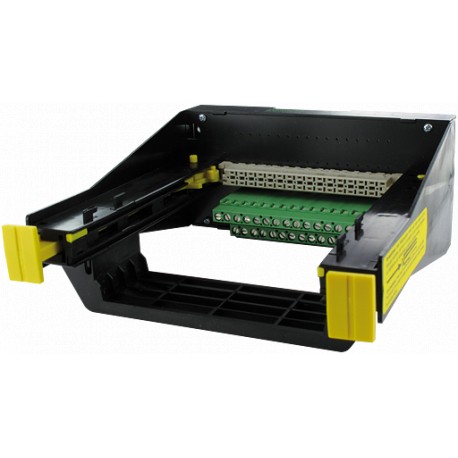

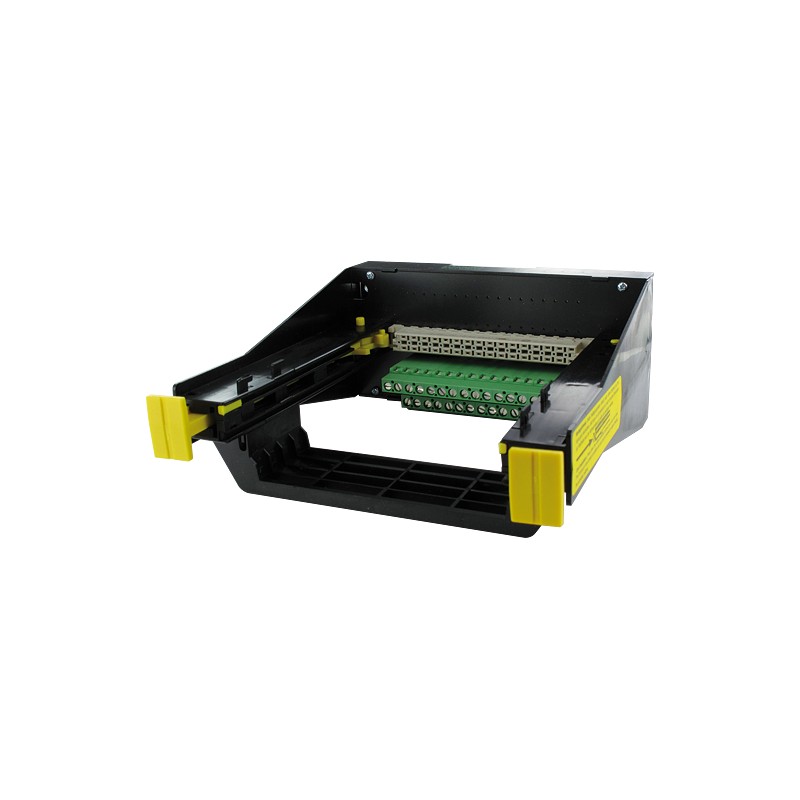

63042 MURRELEKTRONIK EUROCARD HOLDER SKP 64/IB
63042
MURRELEKTRONIK
EUROCARD HOLDER SKP 64/IB
Interfaces cabinets, beacons and luminaries
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
More info
▲SKP 64/IB
| Art.No.: | 63042 |
| Weight: | 0.362 kg |
Screw terminals
64-pole B (EN 60603)
Row a, b
With the vertical snap adapter SASA 135 Art.-No. 63900 the holder can be mounted at right-angles on the rail. The D2 size is for a card without a front plate.
64-pole B (EN 60603)
Row a, b
With the vertical snap adapter SASA 135 Art.-No. 63900 the holder can be mounted at right-angles on the rail. The D2 size is for a card without a front plate.
Technical Data
| Operating voltage | 250 V AC |
|---|---|
| Operating current | max. 2 A |
| Configuration | 64-pole B (EN 60603) |
| Material group | EN 60664-1 over voltage, category I |
| Material | Plastic, flame retardant |
General data
| Connection | 4 mm² single core |
|---|---|
| Mounting method | DIN-rail mountable (EN 60715) or screw fixing |
| Dimensions H × W × D | 137×63×170 mm |
Description
| Functional description | To insert the card first press down the 2 yellow buttons. Then slide the Eurocard into the guide slots pushing until fully engaged. The card is now locked into position. It can be removed by pressing down on the 2 yellow buttons. |
|---|
Commercial data
| country of origin | CZ |
|---|---|
| customs tariff number | 85369010 |
| EAN | 4048879042093 |
| eClass | 27260710 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 63042 63042 63042_Data_Sheet_1.pdf | 155 Kbytes |
 |
| Download general catalog |
|
