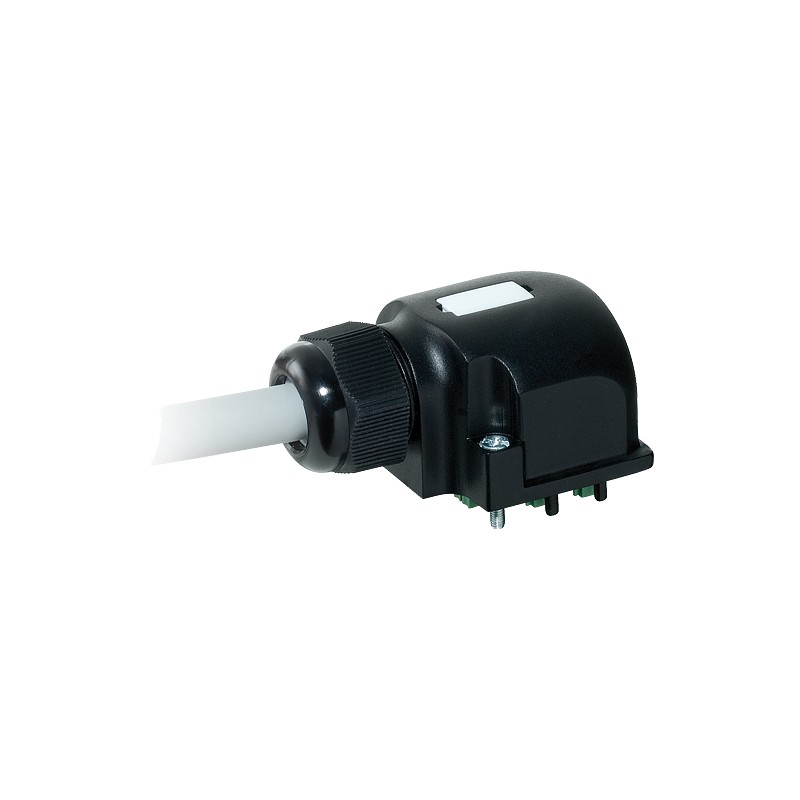

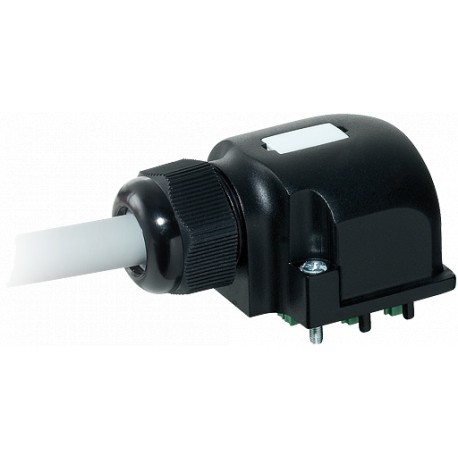

4027072 MURRELEKTRONIK Cap for Distribution Box M12 4-way 5-pole, potentially separated, 5m PUR/PVC-JB, 8x0,..
4027072
MURRELEKTRONIK
Cap for Distribution Box M12 4-way 5-pole, potentially separated, 5m PUR/PVC-JB, 8x0,34+5x0,75
CAP FOR D-BOX M12 4-WAY 5-POLEPot.-sep. 5m PUR/PVC-JB, 8x0,34+5x0,75
CAP FOR D-BOX M12 4-WAY 5-POLE
Passive distribution systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲PUR/PVC
5.0 m
potentially separated
New Art.-No. 8000-84659-3740500
Plastic housings with good resistance against chemicals and oils.
| Total current | max. 2× 8 A |
|---|
| Dimensions H×W×D | 33×48×68 mm |
|---|
| Cable number | 374 |
|---|---|
| No./diameter of wires | 8× 0.34 + 5× 0.75 mm² |
| Wire isolation | PVC |
| C-track properties | 1.5 Mio. |
| Jacket Color | gray |
| Material (jacket) | PUR/PVC |
| Outer Ø | 9.2 mm ±5% |
| Bend radius (fixed) | 10× outer Ø |
| Bend radius (moving) | 12× outer Ø |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -30...+80 °C |
| Color (jacket) | gray |
| country of origin | CZ |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879058186 |
| eClass | 27143423 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 4027072 4027072 EN_4027072.pdf | 165 Kbytes |
|
