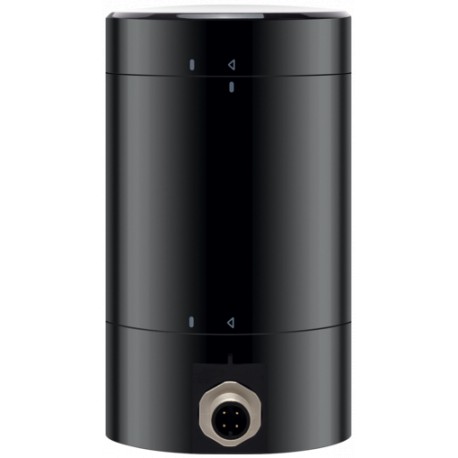

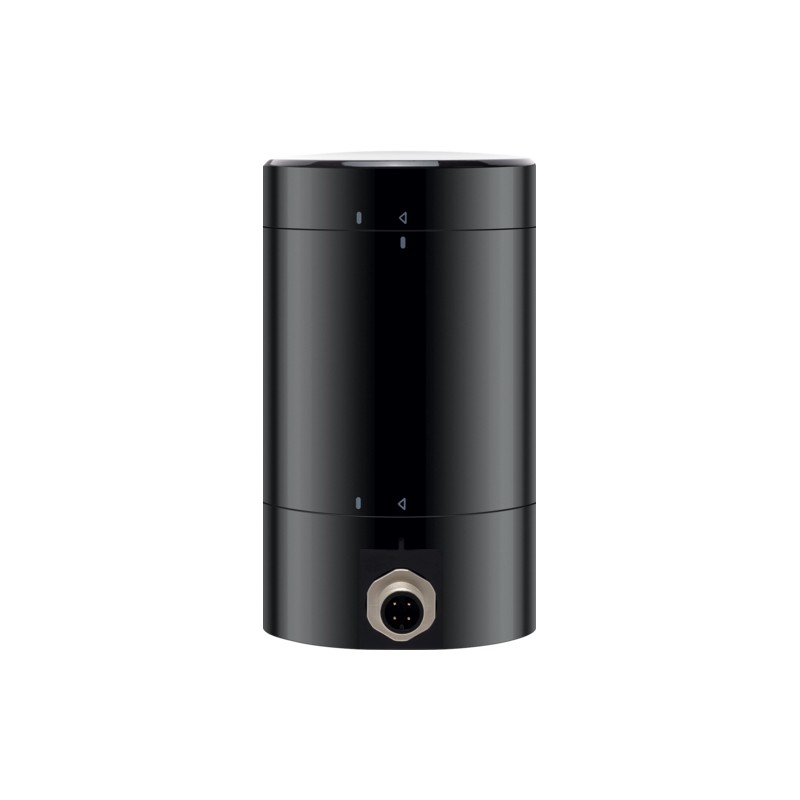

4000-76070-1400015 MURRELEKTRONIK Modlight70 Pro connecting modul IO-Link Connection M12 4 pole, outlet side..
4000-76070-1400015
MURRELEKTRONIK
Modlight70 Pro connecting modul IO-LinkConnection M12 4 pole, outlet side
Modlight70 Pro connecting modul IO-Link
Interfaces cabinets, beacons and luminaries
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Outlet on the side
with M12 connection
IO-Link V1.1
Connection cables are in the online shop under "Connection Technology".
| Operating voltage | 24 V DC (18...30 V DC) |
|---|
| Temperature range | -20...+50 °C (storage temperature -30...+60 °C) |
|---|---|
| Housing | Black plastic |
| Protection | IP65 inserted and tightened (EN 60529) |
| Connection | M12 (4-pole) |
| Dimensions H×W×D | 122×88×70 mm |
| Specification | IO-Link V1.1 |
|---|---|
| Port Class | A |
| IO-Link | Device |
| Transfer parameters | 6 byte / 0 byte (input from master / output to master) |
| Operating modes | COM2 (38.4 kbps) |
| Cycle time | 8 ms |
| Product article number of manufacturer | 4000-76070-1400015 |
|---|
