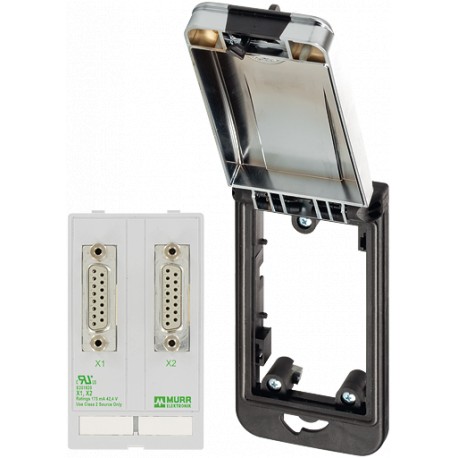

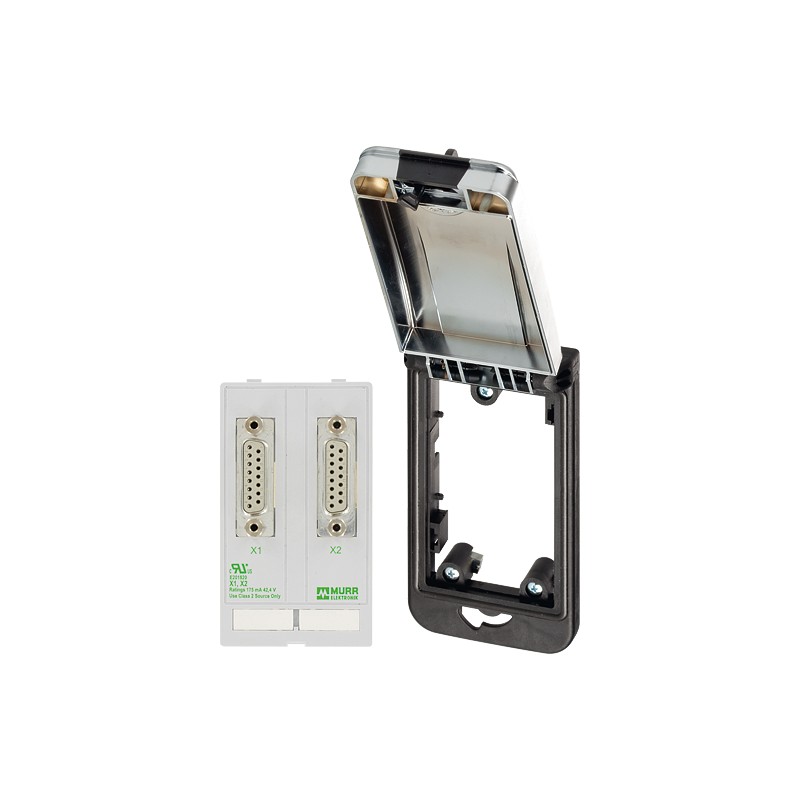

4000-68513-0510001 MURRELEKTRONIK Modlink MSDD set contains:Frame 4000-68223-0000000 Insert 4000-68000-01800..
4000-68513-0510001
MURRELEKTRONIK
Modlink MSDD set contains:Frame 4000-68223-0000000 Insert 4000-68000-0180000 + 4000-68000-0940000
Modlink MSDD set contains: Frame 4000-68513-0000001
Interfaces cabinets, beacons and luminaries
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| suitable for mounting with wall thickness | 1...5 mm |
|---|---|
| Protection | IP65 |
| Housing | Frame: plastic PA black, cap: plastic ABS metallic |
| Temperature range | -30...+70 °C (storage temperature -30...+80 °C) |
| Operating voltage (UL Rating) | max. 30 V AC/42.4 V DC |
|---|---|
| Operating current (UL Rating) | max. 175 mA |
| No. of poles | 15-pole |
| Connection front side | SUB-D (female) |
| Connection rear side | SUB-D (solder connection) |
| Locking of ports | UNC 4...40 bolt |
| country of origin | DE |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879814829 |
| eClass | 27189217 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 4000-68513-0510001 4000-68513-0510001 EN_4000-68513-0510001.pdf | 151 Kbytes |
|
