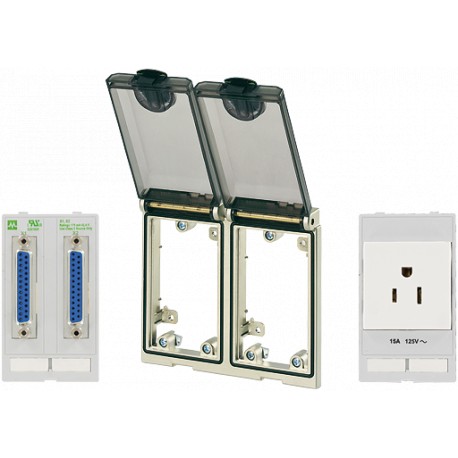

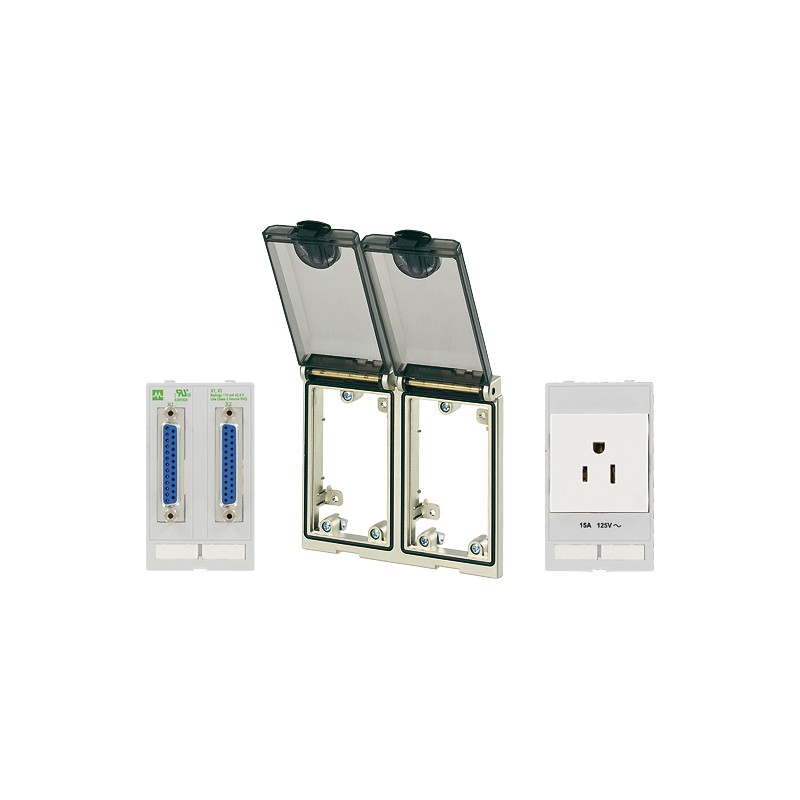

4000-68223-0710040 MURRELEKTRONIK Modlink MSDD set: Frame 4000-68223-0000000, insert 4000-68000-0710000 + 40..
4000-68223-0710040
MURRELEKTRONIK
Modlink MSDD set: Frame 4000-68223-0000000, insert 4000-68000-0710000 + 4000-68000-0040000
Interfaces cabinets, beacons and luminaries
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 4000-68223-0710040 |
| Weight: | 0.449 kg |
| suitable for mounting with wall thickness | 1...5 mm |
|---|---|
| Protection | IP65 |
| Housing | Frame: zinc die-casting, with surface finishing, Lid: plastic, PC transparent |
| Temperature range | -10...+60 °C (storage temperature -25...+60 °C) |
| Operating voltage | 48 V AC/DC |
|---|---|
| Operating voltage (UL Rating) | max. 30 V AC/42.4 V DC |
| Operating current | 3 A |
| Operating current (UL Rating) | max. 175 mA |
| No. of poles | 25-pole |
| Connection front side | SUB-D (female) |
| Connection rear side | SUB-D (solder connection) |
| Locking of ports | UNC 4...40 bolt |
| Operating voltage | 125 V AC |
|---|---|
| Operating current | 15 A |
| No. of poles | 2 + PE |
| Connection | Screw terminals: max. 2 × 2.5 mm² (AWG 14) |
| country of origin | CZ |
|---|---|
| customs tariff number | 85389099 |
| EAN | 4048879032674 |
| eClass | 27189217 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 4000-68223-0710040 4000-68223-0710040 4000-68223-0710040_Data_Sheet_1.pdf | 402 Kbytes |
|
