> MURRELEKTRONIK>Interfaces cabinets, beacons and luminaries>4000-68123-0011810 MURRELEKTRONIK Modlink MSDD set: Frame 4000-68123-0000000, insert 4000-68000-0010000 + 40..
Previous Product Next Product

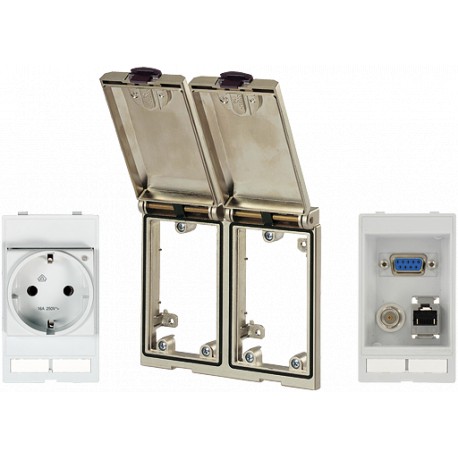

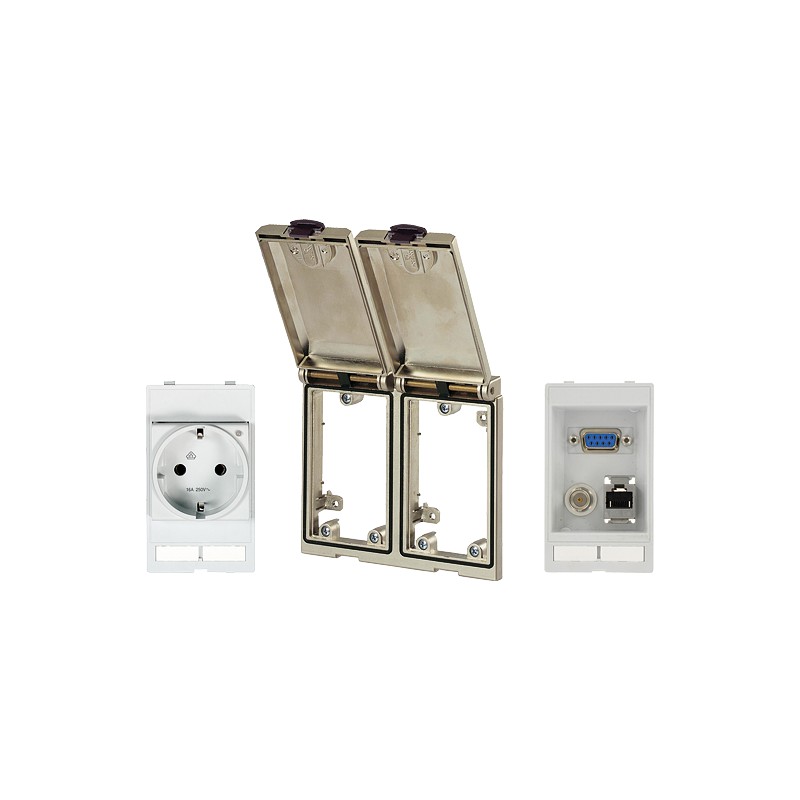

4000-68123-0011810 MURRELEKTRONIK Modlink MSDD set: Frame 4000-68123-0000000, insert 4000-68000-0010000 + 40.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

4000-68123-0011810 MURRELEKTRONIK Modlink MSDD set: Frame 4000-68123-0000000, insert 4000-68000-0010000 + 40..

4000-68123-0011810

MURRELEKTRONIK

Modlink MSDD set: Frame 4000-68123-0000000, insert 4000-68000-0010000 + 4000-68000-1810000

More details


Interfaces cabinets, beacons and luminaries

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK

Total price: $217.73
Unit price: $217.73

Quantity Price
1+$217.73
2+$195.76
4+$177.41
6+$169.94
8+$166.94
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


insert 4000-68000-0010000 + 4000-68000-1810000
Art.No.: 4000-68123-0011810
Weight: 0.741 kg
Ask question
Recommend Product
Frame
suitable for mounting with wall thickness1...5 mm
ProtectionIP65
HousingZinc die-casting, with surface finishing
Temperature range-10...+60 °C (storage temperature -25...+60 °C)
SUB-D9
Operating voltage48 V AC/DC
Operating voltage (UL Rating)max. 30 V AC/42.4 V DC
Operating current3 A
Operating current (UL Rating)max. 175 mA
No. of poles9-pole
Connection front sideSUB-D (female)
Connection rear sideSUB-D (female)
Locking of portsUNC 4...40 bolt
RJ45
Operating voltage (UL Rating)max. 30 V AC/42.4 V DC
Operating current (UL Rating)max. 175 mA
Connection front sideRJ45
Connection rear sideRJ45
Locking of portsSnap In
SpecificationCAT5e, Class D, 100 MHz, (EN 50173-1)
BNC
Operating voltage (UL Rating)max. 30 V AC/42.4 V DC
Operating current (UL Rating)max. 175 mA
No. of poles2 + PE
Connection front sideBNC (female)
Connection rear sideBNC (female)
Locking of portsSnap In
Germany (VDE)
Operating voltage250 V AC
Operating current16 A
No. of poles2 + PE
ConnectionScrew terminals: max. 2 × 6 mm² (AWG 10)
LED displayyellow
Commercial data
country of originCZ
customs tariff number85366990
EAN4048879035002
eClass27189217
Packaging unit1

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRELEKTRONIK EN.pdf 19 Mbytes
4000-68123-0011810 4000-68123-0011810 4000-68123-0011810_Data_Sheet_1.pdf 413 Kbytes 4000-68123-0011810 4000-68123-0011810 4000-68123-0011810_Data_Sheet_1.pdf
