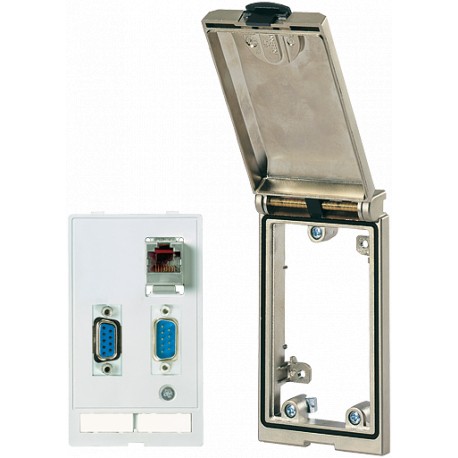

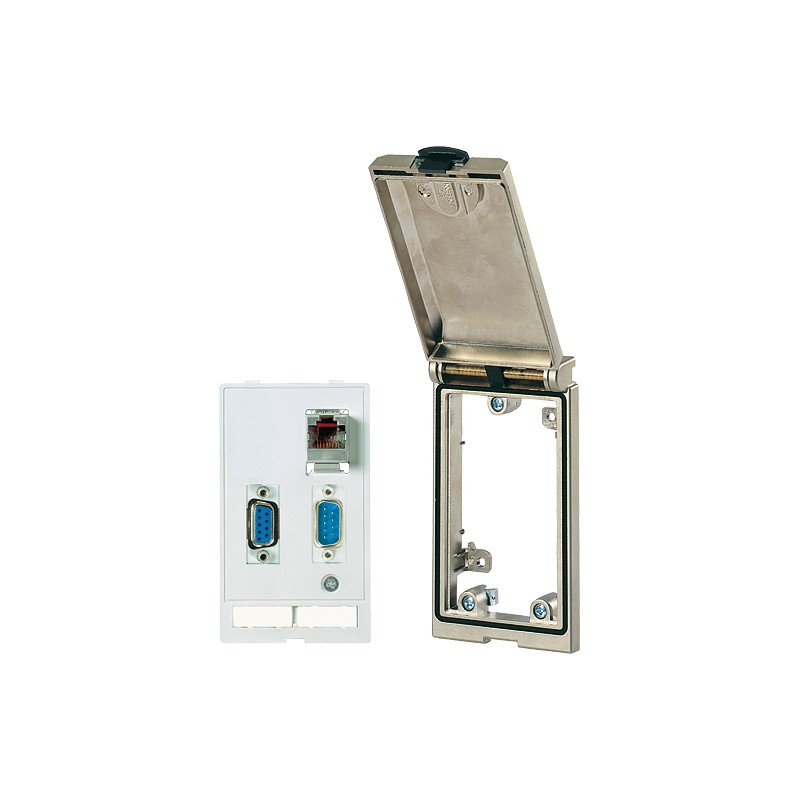

4000-68113-1110000 MURRELEKTRONIK Modlink MSDD set: Frame 4000-68113-0000000, insert 4000-68000-1110000
4000-68113-1110000
MURRELEKTRONIK
Modlink MSDD set: Frame 4000-68113-0000000, insert 4000-68000-1110000
Interfaces cabinets, beacons and luminaries
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 4000-68113-1110000 |
| Weight: | 0.33 kg |
| suitable for mounting with wall thickness | 1...5 mm |
|---|---|
| Protection | IP65 |
| Housing | Zinc die-casting, with surface finishing |
| Temperature range | -10...+60 °C (storage temperature -25...+60 °C) |
| Operating voltage | 48 V AC/DC |
|---|---|
| Operating voltage (UL Rating) | max. 30 V AC/42.4 V DC |
| Operating current | 3 A |
| Operating current (UL Rating) | max. 175 mA |
| No. of poles | 9-pole |
| Connection front side | SUB-D (female) |
| Connection rear side | SUB-D (female) |
| Locking of ports | UNC 4...40 bolt |
| Operating voltage (UL Rating) | max. 30 V AC/42.4 V DC |
|---|---|
| Operating current (UL Rating) | max. 175 mA |
| Connection front side | RJ45 |
| Connection rear side | RJ45 |
| Locking of ports | Snap In |
| Specification | CAT5e, Class D, 100 MHz, (EN 50173-1) |
| country of origin | CZ |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879036122 |
| eClass | 27189217 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 4000-68113-1110000 4000-68113-1110000 4000-68113-1110000_Data_Sheet_1.pdf | 231 Kbytes |
|
