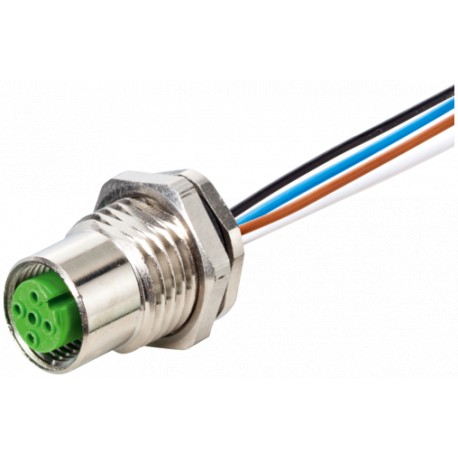

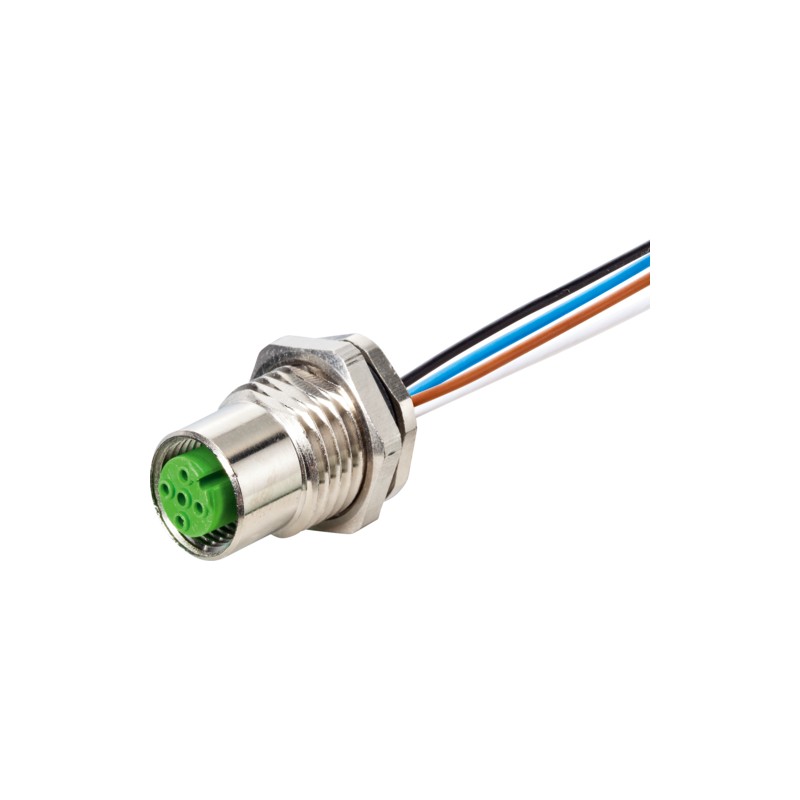

342321 MURRELEKTRONIK M12 female receptacle A-cod. rear mount ferrules PP 5x0.34 0,2m
342321
MURRELEKTRONIK
100
M12 female receptacle A-cod. rear mount ferrules PP 5x0.34 0,2m
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 342321 |
| Weight: | 0.019 kg |
| Country of origin: | DE |
Technical Data
| Family construction form | M12 |
|---|---|
| Width across flats | SW14 |
| Operating voltage AC max. | 125 V |
|---|---|
| Operating voltage DC max. | 125 V |
| Current operating per contact max. | 4 A |
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting set | M12 x 1 |
| Coding | A |
|---|
| Degree of protection (EN IEC 60529) | IP67 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
| Coating locking | nickel plated |
|---|---|
| Locking material | Brass |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 80 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 342321 342321 342321_Data_Sheet_1.pdf | 201 Kbytes |
|
