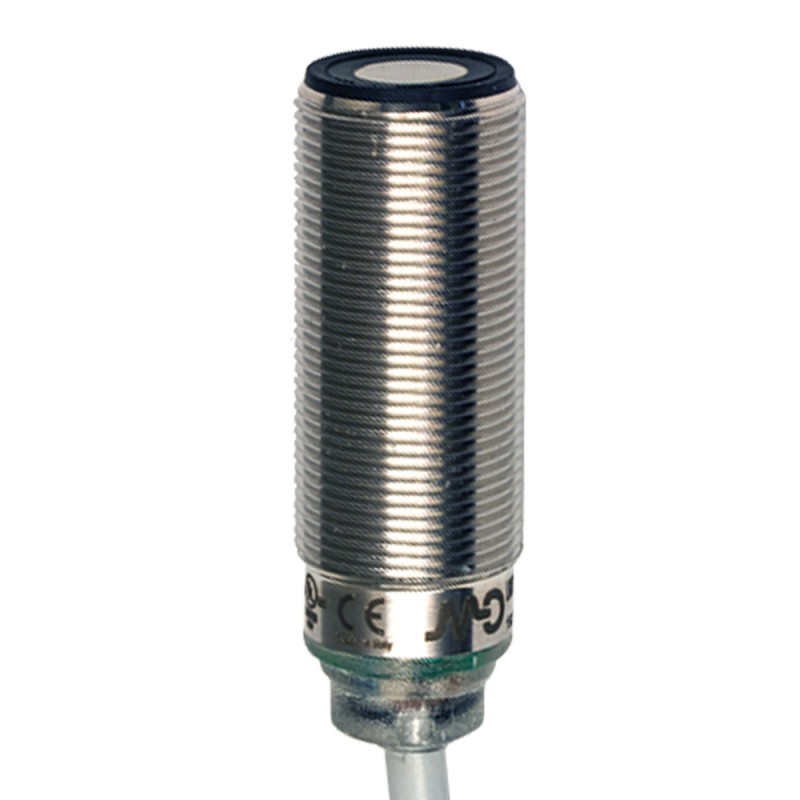

UK6C/HP-1AUL MICRO DETECTORS Ultrasonic sensor M18 PNP NO/NC 80-800 mm cable 2m, with teach-in cable, AISI31..
UK6C/HP-1AUL
MICRO DETECTORS
Ultrasonic sensor M18 PNP NO/NC 80-800 mm cable 2m, with teach-in cable, AISI316L stainless steel housing, cULus
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
More info
▲Technical features
Detection properties
| Nominal sensing distance | 800mm | |
| Thermal drift of Sr | ≤2% | |
| Repeat Accuracy | 0,50% | |
| Beam angle | 8° ± 2° | |
| Resolution | ≤3mm | |
| Sensitivity adjustment | Teach-in by wire | |
| Hysteresis | 1% | |
| thermal compensation | Yes | |
| Minimum sensing distance (blind zone) | 60mm | |
| Linearity error | 1% | |
Outputs
| Output type | 1x PNP | |
| Switching frequency | 5Hz | |
| Response time | 400ms | |
Electrical data
| Operating Voltage | 10 - 30Vdc | |
| No-Load supply current | ≤35mA @Val = 30V | |
| Load current | 100mA | |
| Leakage current | 10μA @ 30Vcc | |
| Output voltage drop | 2,2Vmax. @ IL=100 mA | |
| Max ripple content | 5% | |
| LED indicators | green: echo - yellow: output | |
| Time delay before availability | ≤300ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | M18 x 1 / L = 46,4mm | |
| Weight | 140g | |
| Housing Material | stainless steel AISI 316L | |
| Connections | 2m PVC Cable | |
| Tightening torque | 50Nm | |
| Operating temperature | - 20°C…+ 70°C | |
| Storage temperature | - 35°C…+ 80° C without freeze | |
| Transducer Frequency | 230kHz | |
Test/Approvals
| Approvals | CEcULus | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | IEC EN60947-5-2 / 7.4 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | 2 nuts M18x1, 2 washers Ø 18 | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Response curves
Disassamento Parallelo
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
