UK6C/H1-1EUL
MICRO DETECTORS
1

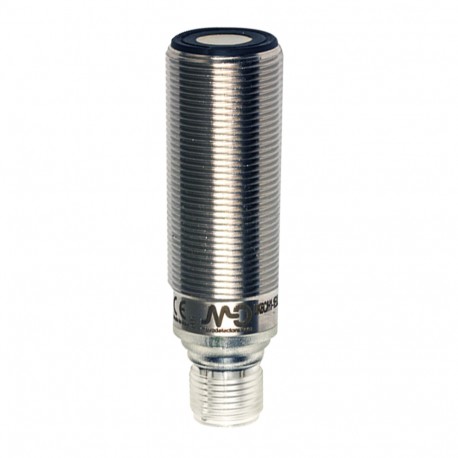

Ultrasonic sensor M18 analogic 0-10 V 80-800 mm plug M12 with teach-in cable, AISI316L stainless steel housing, cULus
UK6C/H1-1EUL Ultrasonic sensor M18 analog. 0-10 V 80-800 mm conn. M12 with teach-in cable, AISI316L stainless steel housing, cULus
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Nominal sensing distance | 800mm | |
Thermal drift of Sr | ≤2% | |
Repeat Accuracy | 0,50% | |
Beam angle | 8° ± 2° | |
Resolution | ≤3mm | |
Sensitivity adjustment | Teach-in by wire | |
Hysteresis | 1% | |
thermal compensation | Yes | |
Minimum sensing distance (blind zone) | 60mm | |
Linearity error | 1% |
Output type | analogue output 0…10v | |
Switching frequency | 5Hz | |
Response time | 500ms |
Operating Voltage | 10 - 30Vdc | |
No-Load supply current | ≤35mA @Val = 30V | |
Load current | 100mA | |
Leakage current | 10μA @ 30Vcc | |
Output voltage drop | 2,2Vmax. @ IL=100 mA | |
Max ripple content | 5% | |
LED indicators | green: echo - yellow: output | |
Time delay before availability | ≤300ms | |
Short-circuit protection | Yes | |
Reverse Polarity Protection | Yes | |
Impulsive Overvoltage Protection | Yes | |
Minimum load resistence | 3kΩ |
Dimensions | M18 x 1 / L = 60,3mm | |
Weight | 80g | |
Housing Material | stainless steel AISI 316L | |
Connections | M12 Plug | |
Tightening torque | 50Nm | |
Operating temperature | - 20°C…+ 70°C | |
Storage temperature | - 35°C…+ 80° C without freeze | |
Transducer Frequency | 230kHz |
Approvals | CEcULus | |
EMC compatibility | IEC 60947-5-2 | |
Shocks and vibrations | IEC EN60947-5-2 / 7.4 | |
Degree of protection | IP67 |
Supplied Accessories | 2 nuts M18x1, 2 washers Ø 18 |
