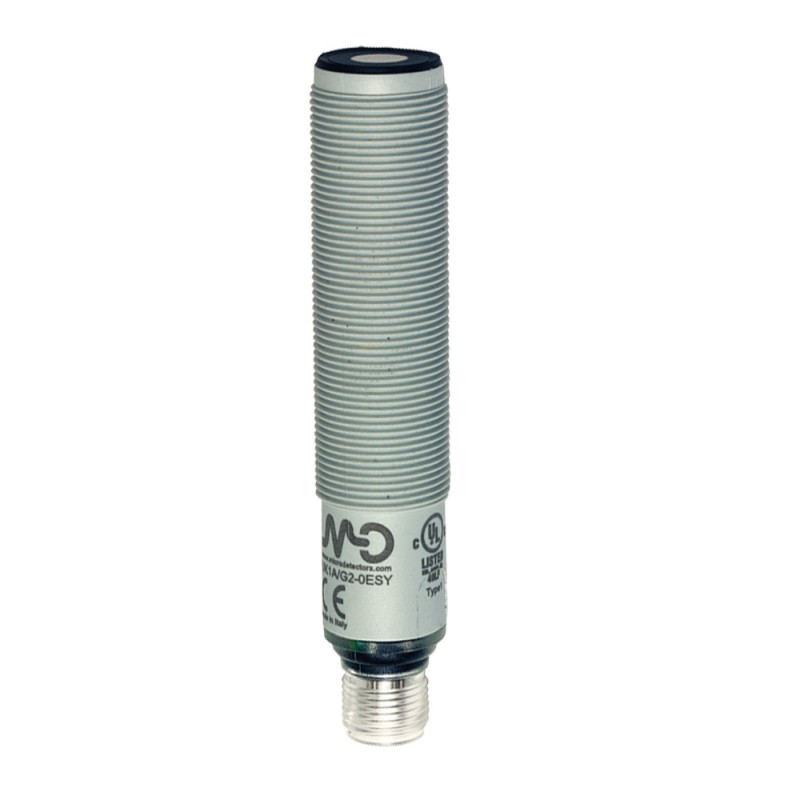

UK1A/GP-0ESY MICRO DETECTORS Ultrasonic sensor M18 PNP NO/NC 50-400 mm plug M12 with teach-in button, plasti..
UK1A/GP-0ESY
MICRO DETECTORS
Ultrasonic sensor M18 PNP NO/NC 50-400 mm plug M12 with teach-in button, plastic, cULus
UK1A/GP-0ESY Ultrasonic sensor M18 PNP NO/NC 50-400 mm conn. M12 with teach-in button, plastic, cULus
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical details
Discovery properties
| Nominal range | 400mm | |
| Thermal drift | ±2% | |
| Repeatability | 0,50% | |
| Beam angle | 10° ± 2° | |
| resolution | ≤3mm | |
| Sensitivity adjustment | push-button auto-tune | |
| Hysteresis | 1% | |
| Thermal compensation | Yes | |
| Minimum range (dead zone) | 50mm | |
| Linearity Error | 1% | |
Outputs
| Output type | 1x PNP | |
| Exit function | NA/NC | |
| Switching frequency | 10Hz | |
| Sensitivity adjustment | 500ms | |
Electrical data
| Supply voltage | 10 - 30vdc | |
| Absorption of current in the vacuum | ≤50mA | |
| Load current | 100mA | |
| Leakage current | 10µA @ 30vdc | |
| Voltage drop to the output | 2,2 Vmax. @ IL=100 mA | |
| Maximum residual ripple | 5% | |
| LED indicators | green: eco - yellow: output | |
| Delay to the availability | ≤300 µs, | |
| Protection short circuit | yes | |
| Protection polarity reversal | yes | |
| Protection against impulse overvoltage | yes | |
Mechanical data
| Dimensions | M18 x 1 / L = of 91.6 mm | |
| Weight | 70g | |
| body material | PBT body plastic | |
| Connections | M12 connector | |
| Tightening torque | 1Nm | |
| Operating temperature | - 20°C...+ 70°C | |
| Storage temperature | - 35°C...+ 80° C without freezing | |
| Frequency of the transducer | 300kHz | |
Test/Certifications
| Certifications | CEcULus | |
| Electromagnetic compatibility | IEC 60947-5-2 | |
| Shock and vibration | IEC EN60947-5-2 / 7.4 | |
| Degree of protection | IP67 | |
Accessories
| Accessories included | 2 washers M18x1, 2 nuts Ø 18 | |
Electrical wiring diagram of the connections
Connector
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
