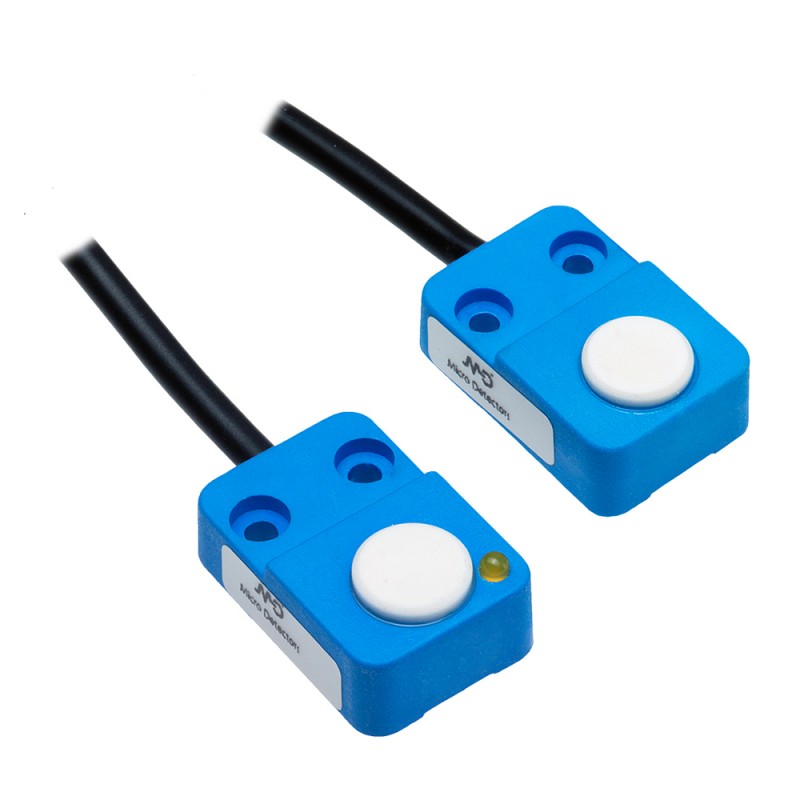

UK1A/E9-0E MICRO DETECTORS Ultrasonic sensor M18 analogic 0-10 V+ NPN NO/NC 50-400 mm plug M12 with teach-in..
UK1A/E9-0E
MICRO DETECTORS
Ultrasonic sensor M18 analogic 0-10 V+ NPN NO/NC 50-400 mm plug M12 with teach-in button
Sensors
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 1100mm | |
| Beam angle | ± 9° | |
| Sensitivity adjustment | No | |
| thermal compensation | Yes | |
| Minimum sensing distance (blind zone) | 0mm | |
Outputs
| Output type | NPN | |
| Output Function | NO | |
| Switching frequency | 500Hz | |
| Response time | 1ms | |
Electrical data
| Operating Voltage | 19 - 30Vdc | |
| Load current | 40mA | |
| Leakage current | < 10µA | |
| Output voltage drop | < 2,5V | |
| Max ripple content | < 10% | |
| LED indicators | Yellow LED (output active or incorrect alignment) | |
| Time delay before availability | < 200ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | 24 x 50 x 15mm | |
| Weight | 150g | |
| Housing Material | PBTP | |
| Connections | 2m PVC cable | |
| Active Head Material | ceramics | |
| Operating temperature | - 15°C…+ 60°C | |
| Storage temperature | - 25°C…+ 75° C (without freeze) | |
| Transducer Frequency | 180KHz | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | IEC EN 60947-5-2 / 7.4 | |
| Degree of protection | IP67 (EN60529) | |
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
