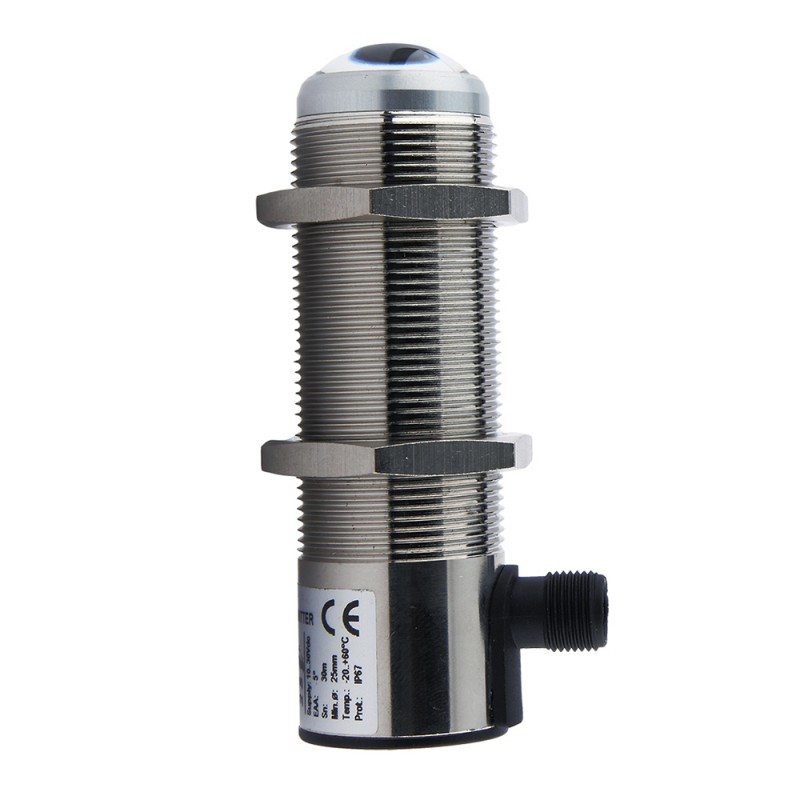

TH2/E-KIC MICRO DETECTORS Safety sensor Emitter M30 60m metallic plug M12 90° I/O IEC61131-2 f 123 kHz
TH2/E-KIC
MICRO DETECTORS
Safety sensor Emitter M30 60m metallic plug M12 90° I/O IEC61131-2 f=123 kHz
TH2/E-KIC Safety sensor Emitt. M30 60m metal. conn. M12 90° I/O IEC61131-2 f=123 kHz
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 60m (ExG=2) | |
| Thermal drift of Sr | ≤ 10% | |
| Effective Aperture Angle | Typical ±1,8° | |
Application
| Function Principle | Through-Beam (receiver) | |
| Notes | not working with SBCR03 control unit.To be used with external safety control unit with automatic optics test function | |
| Type | 2 | |
| SIL | 1' | |
| SILCL | 1 | |
| PL | c | |
| PFHd | 1,00E-06 | |
| MTTFd | 20 | |
Electrical data
| Operating Voltage | 10 … 30 Vdc | |
| No-Load supply current | ≤ 25mA | |
| Max ripple content | ≤ 5 Vpp | |
| LED indicators | Yellow (power) | |
| Emission | Red | |
Mechanical data
| Dimensions | M30 | |
| Housing Material | PBT | |
| Connections | M12 plug | |
| Active Head Material | Glass | |
| Operating temperature | -20°C … +55°C | |
| Storage temperature | -40°C … +75°C | |
| humidity | 15% … 95% | |
Test/Approvals
| Approvals | CE, TÜV | |
| Shocks and vibrations | 10g - 16ms (according to IEC600068-2-29)10Hz…55Hz - 1 oct/min - 0,35mm (according to 60068-2-6) | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | 2 x nuts | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
