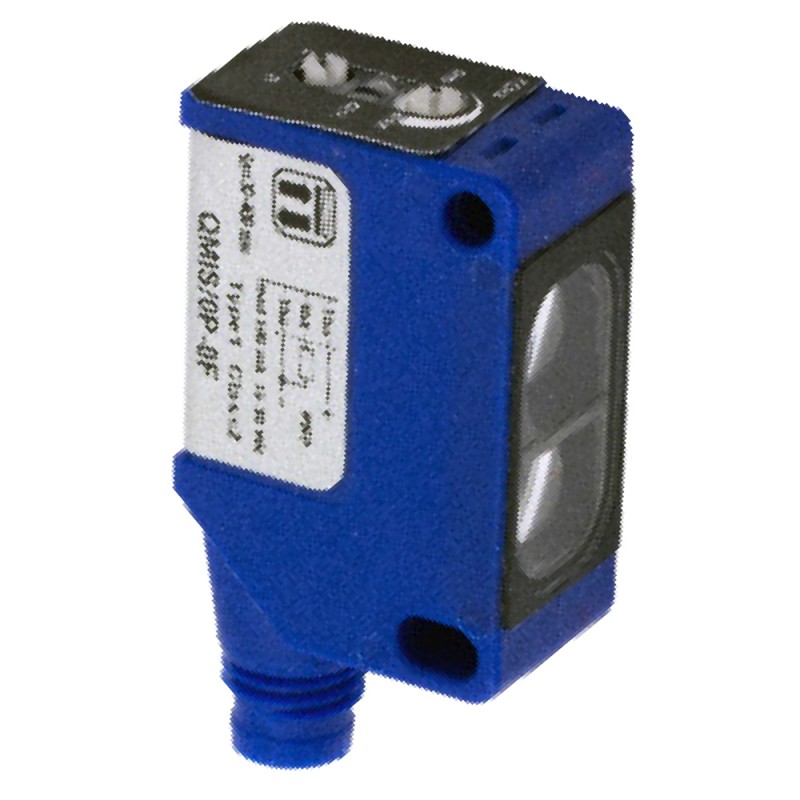

QMIHD/0P-0F MICRO DETECTORS Photoelectric sensor Miniature cubic photoelectric E + R Infrared, adjustment 30..
QMIHD/0P-0F
MICRO DETECTORS
Photoelectric sensor Miniature cubic photoelectric E + R Infrared, adjustment 30m PNP L/D plug M8 4pins
QMIHD/0P-0F Photoelectric sensor Miniature cubic photoelectric E + R Infrared adj. 30m PNP L/D conn. M8 4pins
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 30m | |
| Thermal drift of Sr | ≤10% Sr (ricevitore) | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | Trimmer (emettitore) | |
Application
| Function Principle | A barriera | |
| Emitter Code | QMIH/00-0F | |
| Receiver Code | QMID/0P-0F | |
Outputs
| Output type | PNP (ricevitore) | |
| Output Function | LO/DO selezionabile (ricevitore) | |
| Switching frequency | 2kHz | |
Electrical data
| Operating Voltage | 10-30Vdc | |
| No-Load supply current | ≤45mA | |
| Load current | ≤100mA (ricevitore) | |
| Leakage current | ≤10μA (ricevitore) | |
| Output voltage drop | 2V max. IL =100 mA (ricevitore) | |
| Max ripple content | 10% | |
| LED indicators | Giallo (emettitore acceso) - Giallo (stato output ricevitore) , verde (eccesso di guadagno ricevitore) | |
| Time delay before availability | ≤200ms | |
| Short-circuit protection | Sì | |
| Reverse Polarity Protection | Sì | |
| Emission | Led Infrarosso | |
| Interference to external light | 3000lux (lampada incandescente), 10000lux (luce solare) | |
| Impulsive Overvoltage Protection | Sì | |
Mechanical data
| Dimensions | 40,6x21x13mm | |
| Weight | 10g (emettitore) + 10g (ricevitore) | |
| Housing Material | PA66 | |
| Connections | Uscita connettore M8 | |
| Active Head Material | PMMA | |
| Tightening torque | 1Nm | |
| Operating temperature | - 25°C…+ 70° C (Senza condensa) | |
| Storage temperature | - 30°C…+ 80° C (Senza condensa) | |
Test/Approvals
| Approvals | CE cULus | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibrazioni IEC 60068-2-6 / Urti IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
Datasheet - PDF
