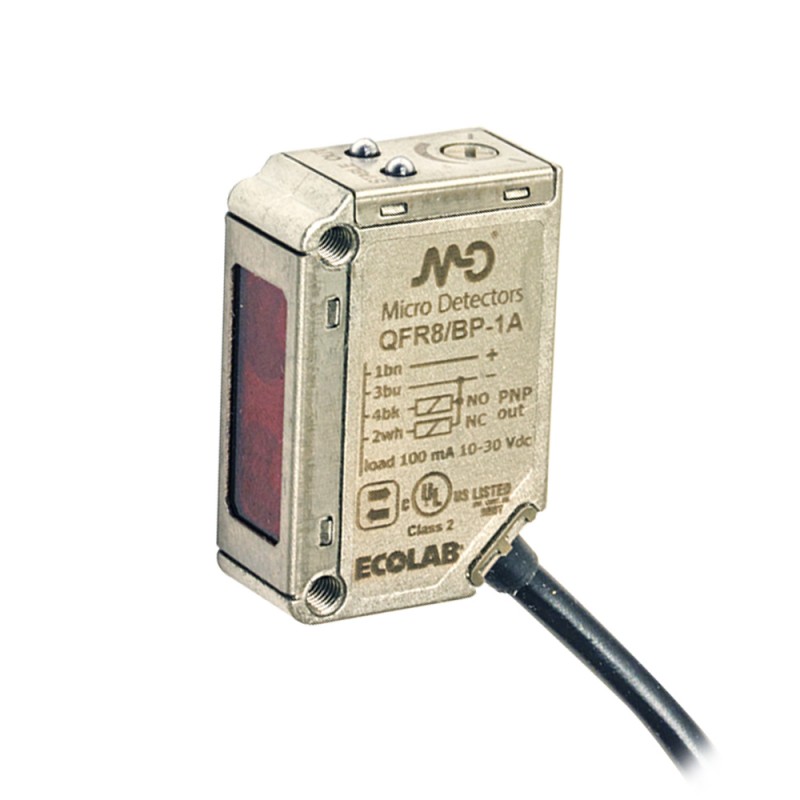

QFR8/BP-1A MICRO DETECTORS Photoelectric sensor Miniature cubic IP69K metallic AISI 316L diffuse 1m. Red PNP..
QFR8/BP-1A
MICRO DETECTORS
Photoelectric sensor Miniature cubic IP69K metallic AISI 316L diffuse 1m. Red PNP NO +NC cable 2m
QFR8/BP-1A Photoelectric sensor Miniature cubic IP69K Metal. AISI 316L Diffuse 1m. Red PNP NO +NC cable 2m
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 1000mm white target 90% Kodak 200x200mm | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | Trimmer | |
Application
| Function Principle | Diffuse reflection | |
| Notes | White target 90% Kodak 200x200mm | |
| Emitter/Receiver | Emitter/Receiver | |
Outputs
| Output type | PNP | |
| Output Function | NO+NC | |
| Switching frequency | 1kHz | |
Electrical data
| Operating Voltage | 10-30Vdc | |
| No-Load supply current | ≤25mA | |
| Load current | ≤100mA | |
| Leakage current | ≤100μA | |
| Output voltage drop | 2V max. IL =100 mA | |
| Max ripple content | 10% | |
| LED indicators | Yellow (status output) , green (power on, excess gain) | |
| Time delay before availability | ≤30ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | Red (617nm) | |
| Interference to external light | ≤10000lux | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | 31,4x21x11mm | |
| Weight | 100g | |
| Housing Material | Stainless steel 316L | |
| Connections | 2m PVC cable | |
| Active Head Material | PPSU | |
| Operating temperature | - 25°C…+ 60° C (Without freeze) | |
| Storage temperature | -40° ... +70°C | |
Test/Approvals
| Approvals | CE cULus, ECOLAB | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP68, IP69K | |
Accessories
| Supplied Accessories | Mouting bracket screwdriver | |
Electrical diagrams of the connections
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Datasheet - PDF
