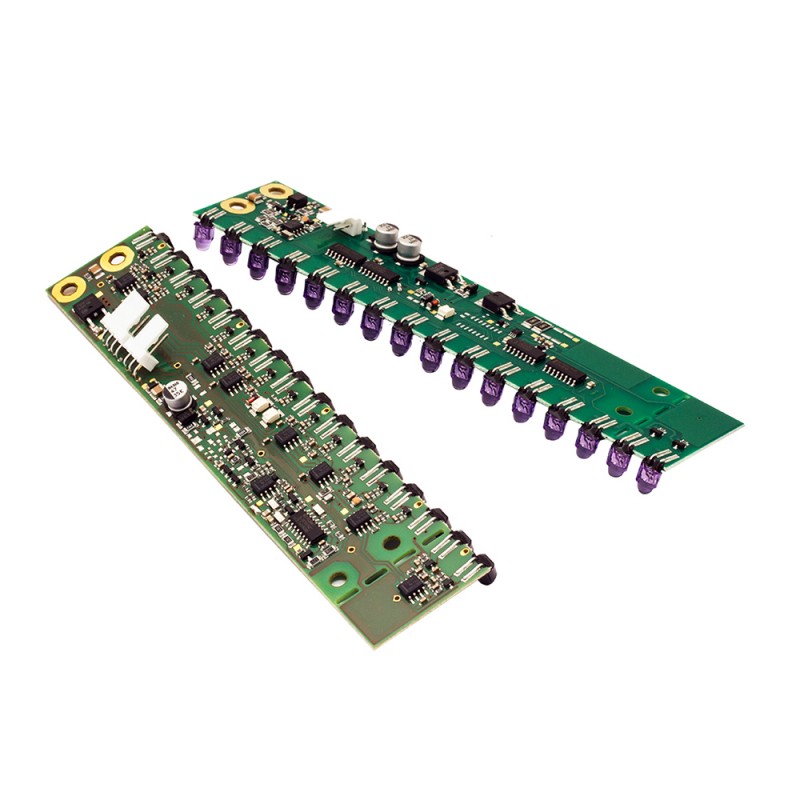

NX14SR/XAP-A000 MICRO DETECTORS Area sensor Kit E+R PNP NO 14 beams axial with sensing, adjustment, with che..
NX14SR/XAP-A000
MICRO DETECTORS
Area sensor Kit E+R PNP NO 14 beams axial with sensing, adjustment, with check
NX14SR/XAP-A000 Area sensor Kit E+R PNP NO 14 beams axial with sens. adj. with check
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 0,5 … 2m | |
| Beams space | 10mm | |
| controlled height | 130mm | |
| minimum detectable object | ø 5mm (in the central area with adjustment) | |
| number of rays | 14 | |
| Sensitivity adjustment | Yes | |
Application
| Function Principle | emitter+receiver | |
Outputs
| Output type | PNP | |
| Output Function | NO | |
Electrical data
| Operating Voltage | 10 -26Vdc | |
| No-Load supply current | 150mA (emitter) - 25mA (receiver) | |
| Load current | 100mA | |
| Leakage current | < 10µA @ 26V | |
| Output voltage drop | 2V @ 100mA | |
| Max ripple content | 10% | |
| LED indicators | emitter: yellow (supply and emission active) - receiver: red (signal level) - yellow (output state active) | |
| Time delay before availability | < 85 ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | infrared 880nm | |
| Interference to external light | 1000lux (incandescent light) - 1500lux (sunlight) | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | 140 x 36 x 18mm | |
| Weight | 104g | |
| Connections | With PCB connectors / Emitter, Conn. 3 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 1 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 2 MOLEX 22-05-7048 Positive, Check, Output, Common | |
| Operating temperature | 0°C…+ 55° C (without freeze) | |
Test/Approvals
| Degree of protection | Not defined | |
