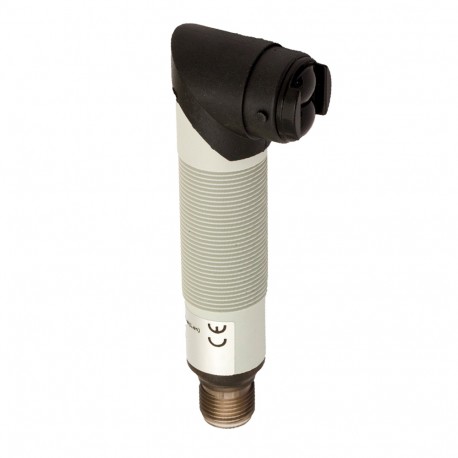

MQ0/00-0E MICRO DETECTORS Photoelectric sensor BGS 50 mm ott. 90° L/D selez. plastic plug M12
MQ0/00-0E
MICRO DETECTORS
Photoelectric sensor BGS 50 mm ott. 90° L/D selez. plastic plug M12
MQ0/00-0E Photoelectric sensor BGS 50 mm ott. 90° L/D selez. plast. conn. M12
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
Detection properties
| Nominal sensing distance | 50mm | |
| Thermal drift of Sr | ≤ 10% | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | No | |
Application
| Function Principle | Background suppression | |
| Optic position | Radial | |
Outputs
| Output type | TRIAC | |
| Output Function | LO/DO selectable | |
| Switching frequency | 25Hz | |
Electrical data
| Operating Voltage | 20…235Vac/50-60Hz | |
| No-Load supply current | ≤40mARMS | |
| Load current | 5…300mARMS | |
| Leakage current | ≤1,5mARMS IL=250Vca | |
| Output voltage drop | ≤3V IL=300mA | |
| LED indicators | Yellow(light output status) | |
| Time delay before availability | 200ms | |
| Emission | Infrared (880nm) | |
| Interference to external light | 3.000lux (incandescent lamp), 10.000lux (sunlight) | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | M18x1/L=88,8mm | |
| Weight | 30g | |
| Housing Material | PBT | |
| Connections | M12 plug cable exit | |
| Active Head Material | PMMA | |
| Tightening torque | 1Nm | |
| Operating temperature | - 25°C…+ 70° C (without freeze) | |
| Storage temperature | - 55°C…+80°C | |
Test/Approvals
| Approvals | CE, cRUus | |
| EMC compatibility | EN 50082-2;EN 60947-5-2;EN50081-1 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | Metallic nut (2x) | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
