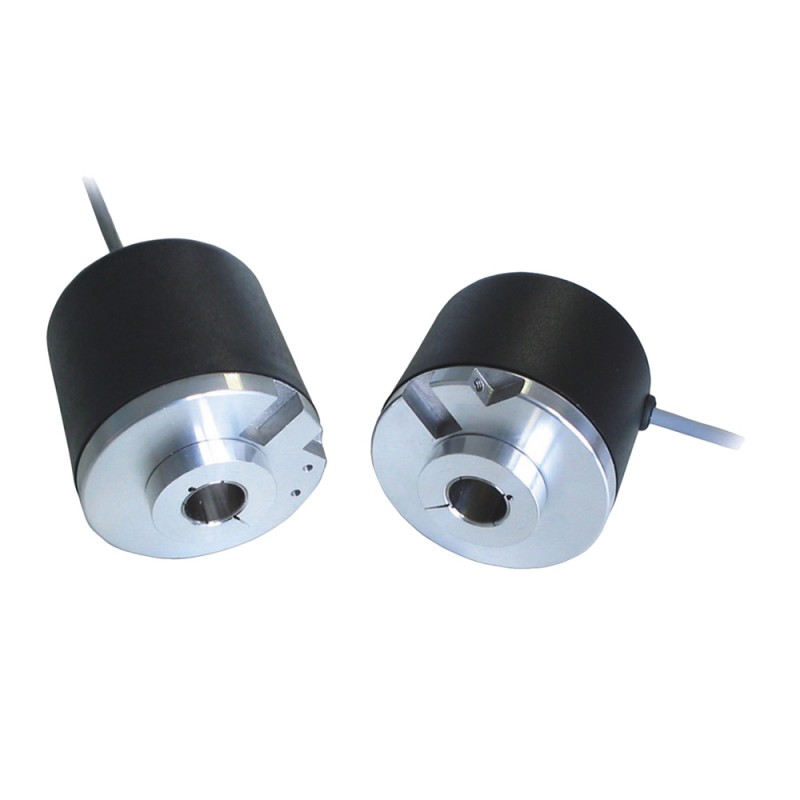

MDI63G 1677 MDI63G128S5/30P10SXMA.162.162 MICRO DETECTORS Incremental Encoder Hollow Shaft 63mm, Flange G, R..
MDI63G 1677
MDI63G128S5/30P10SXMA.162.162
MICRO DETECTORS
Incremental Encoder Hollow Shaft 63mm, Flange G, Resolution 128 ppm, Without Zero Pulse, Push-Pull, Shaft 10mm, IP66, Axial MIL Connector Exit
MDI63G128S5/30P10SXMA.162 - Hollow Shaft 63mm, Flange G, Res. 128 ppm, Without Zero Pulse, Push-Pull, Shaft 10mm, IP66, Axial MIL Connector Exit
Sensors
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
More info
▲Technical features
| Resolution | da 100 a 2500 ppr | |
| counting direction | A leads B clockwise (shaft view) | |
Application
| max output frequency | 220 kHz | |
Outputs
| Output type | push-pull / line driver | |
Electrical data
| Operating Voltage | 5/30 = 4,5 ... 30 V DC (reverse polarity protection) | |
| No-Load supply current | 800 mW | |
| max load current | 20 mA / channel | |
Mechanical data
| Weight | 350 g (12,35 oz) | |
| Housing Material | PA66 glass fiber reinforced | |
| Operating temperature | -20° ... +70°C (-4° ... +158°F) | |
| Storage temperature | -25° ... +70°C (-13° ... +158°F) | |
| max shaft load | 200 N | |
| Hole diameter | ø 10 / 15 mm | |
| max rotation speed | 3000 rpm | |
| moment of inertia | 4 x 10-6 kgm2 | |
| starting torque at 20°c | < 0,02 Nm (IP 54) < 0,06 Nm (IP 66) | |
| Fixing torque for collar clamping | 1 Nm max | |
| shaft material | 1.4305 / AISI 303 stainless steel | |
| bearings | 2 ball bearings | |
| bearings life | 109 revolutions | |
Test/Approvals
| EMC compatibility | IEC 61000-6-2 IEC 61000-6-4 | |
| Shocks and vibrations | 10 G, 10 ... 2000 Hz (IEC 60068-2-6) | |
| Degree of protection | X = IP 54 (IEC 60529) S = IP 66 (IEC 60529) | |
Dimension (mm)
Datasheet - PDF
