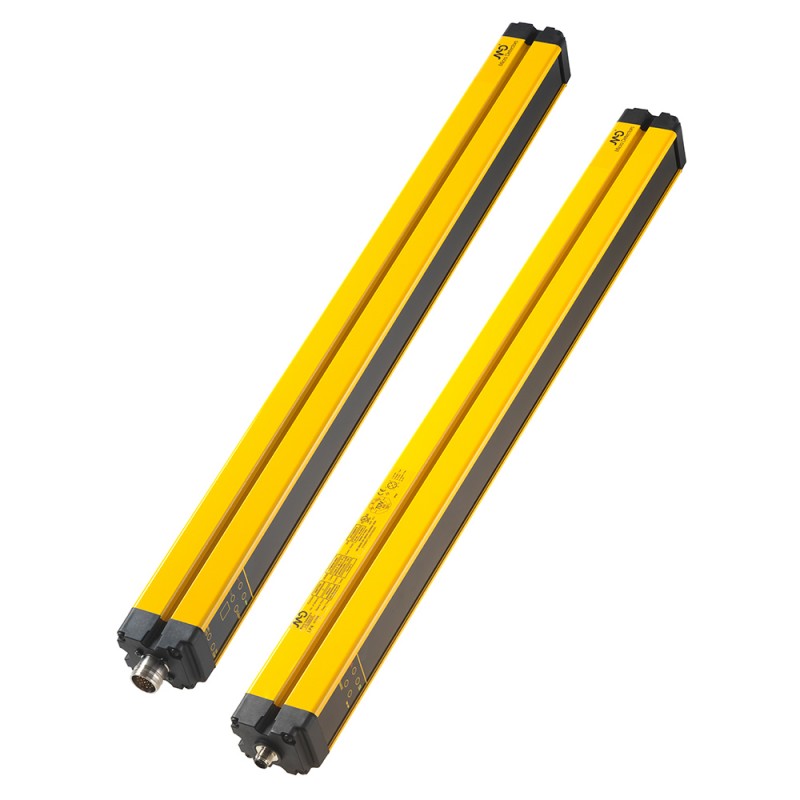

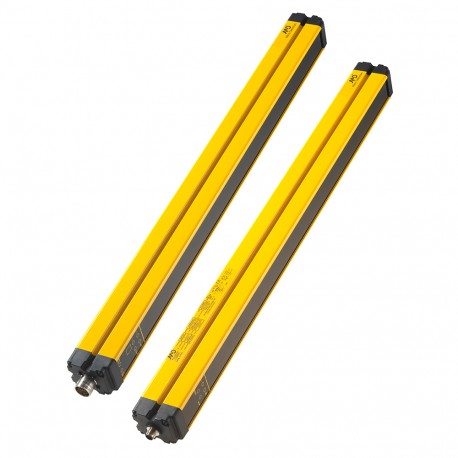

LP4ER/40-090L MICRO DETECTORS Safety sensor R 40mm h 910mm max. range 60m Auto-manual restart EDM
LP4ER/40-090L
MICRO DETECTORS
Safety sensor R=40mm h=910mm max. range=60m Auto-manual restart + EDM
LP4ER/40-090L Safety sensor R=40mm h=910mm max. range=60m Auto-manual restart + EDM
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | ≤ 60m | |
| controlled height | 910mm | |
| number of rays | 30 | |
| Effective Aperture Angle | ≤ ±2,5° | |
Application
| Function Principle | Emitter + Receiver | |
| Available functions | Manual/Automatic Restart, EDM, System Status | |
| Type | 4 | |
| SIL | 3 | |
| SILCL | 3 | |
| PL | e | |
| PFHd | 1,17E-08 | |
| Dcavg | 98,49% | |
| MTTFd | 100 | |
| CFF | 80% | |
Outputs
| Output type | 2 x PNP-NO (OSSD safety output) | |
| Response time | 23ms | |
Electrical data
| Operating Voltage | 19,2 … 28,8 Vcc | |
| Load current | 500mA | |
| Time delay before availability | 15s | |
| Interference to external light | According to IEC 61496-2 | |
| Power Consumption - Receiver | 6W | |
| Power Consumption - Emitter | 3W | |
| Equivalent Resistive Load | ≥ 48 Ω | |
| Capacitive Load | ≥ 2 µF | |
| Cabel Length (Power Supply/Output) | 100m | |
Mechanical data
| Dimensions | 50mm (front) x 60mm | |
| Connections | M12-5 poles (emitter)M23-19 poles (receiver) | |
| Operating temperature | 0°C…+55°C | |
| Storage temperature | -25°C…+70°C | |
| humidity | 95% (no condensation) | |
Test/Approvals
| Approvals | CE, cULus, TÜV | |
| EMC compatibility | According to 2014/30/EU Directive | |
| Shocks and vibrations | According to IEC 61496-1 | |
| Degree of protection | IP65 | |
Accessories
| Supplied Accessories | ST 202, ST 203 | |
Electrical diagrams of the connections
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
