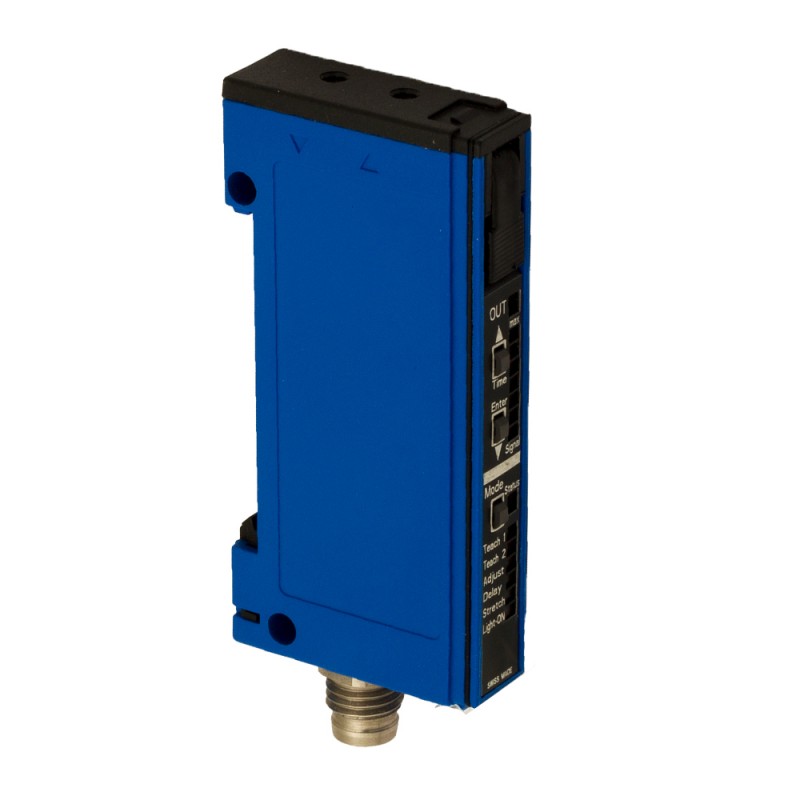

FX3/0P-0A MICRO DETECTORS Fibre amplifier Optical fibre amplifier DIN rail PNP trimmer cable 2m
FX3/0P-0A
MICRO DETECTORS
Fibre amplifier Optical fibre amplifier DIN rail PNP trimmer cable 2m
FX3/0P-0A Optical Fibre Amplifier DIN rail PNP trimmer cable 2m
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | Vedi tabella delle fibre ottiche | |
| Operative range | 20…200 mm | |
| Thermal drift of Sr | 0.2 % / °C | |
| Sensitivity adjustment | Potenziometro | |
| Hysteresis | 10% | |
Outputs
| Output type | PNP | |
| Output Function | NO / NC selezionabile | |
| Switching frequency | ≤ 1,500 Hz | |
Electrical data
| Operating Voltage | 10….30 Vdc | |
| No-Load supply current | ≤ 15 mA typ. A / a UB =24 V | |
| Load current | ≤ 200 mA | |
| Leakage current | ≤ 0.1 mA | |
| Output voltage drop | ≤ 20% V a / a 200 mA | |
| Max ripple content | ≤ 20% V / al / UB | |
| LED indicators | Giallo (uscita attivata); verde (alimentazione) | |
| Time delay before availability | 300 ms | |
| Short-circuit protection | Si | |
| Reverse Polarity Protection | Si | |
| Emission | Led Rosso | |
| Interference to external light | 5.000lux (lampada ad incandescenza), 10.000lux (luce solare) | |
| Impulsive Overvoltage Protection | Si | |
Mechanical data
| Dimensions | 10x31x60 mm | |
| Weight | 69 g | |
| Housing Material | PBTP | |
| Connections | 2 m PVC cavo | |
| Operating temperature | - 25°C…+ 55°C (senza condensa) | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | IEC 60947-5-2 / 7.4 | |
| Degree of protection | IP64 (EN60529) | |
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
