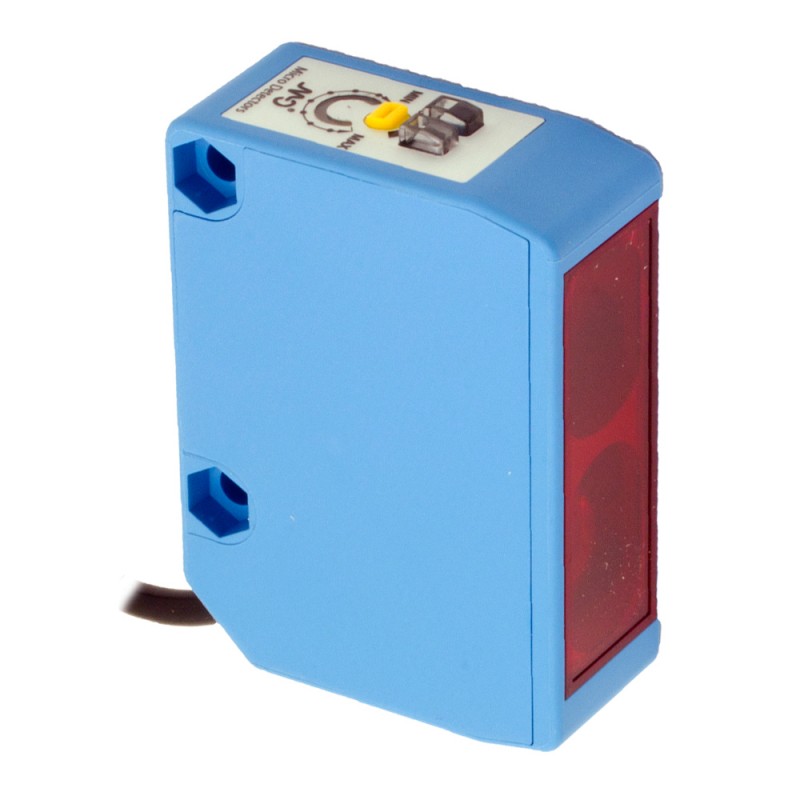

FGRHD/0P-0A MICRO DETECTORS Photoelectric sensor Cubic photoelectric E +R, adjustment 50 m PNP L/D cable 2m
FGRHD/0P-0A
MICRO DETECTORS
Photoelectric sensor Cubic photoelectric E +R, adjustment 50 m PNP L/D cable 2m
FGRHD/0P-0A Photoelectric sensor Cubic photoelectric E +R adj. 50 m PNP L/D cable 2m
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 50m | |
| Sensitivity adjustment | Potenziometro 2 giri con indicatore di posizione (emettitore) | |
Application
| Function Principle | A barriera | |
| Emitter Code | FGRH/00-0A | |
| Receiver Code | FGRD/0P-0A | |
Outputs
| Output type | PNP | |
| Output Function | LO/DO selezionabile | |
| Switching frequency | 1kHz | |
Electrical data
| Operating Voltage | 10-30Vdc (tensione limite) | |
| No-Load supply current | ≤ 35mA (emettitore), ≤ 20mA (ricevitore) | |
| Load current | ≤ 100mA (ricevitore) | |
| Output voltage drop | 1.8V max @ 100mA (ricevitore) | |
| Max ripple content | 5Vpp | |
| LED indicators | Indicatore led rosso | |
| Short-circuit protection | Short circuit, overcurrent, overvoltage | |
| Reverse Polarity Protection | Sì | |
| Emission | Led Rosso | |
| Interference to external light | 10,000Lux luce solare minima 3,000Lux lampada HF | |
| Impulsive Overvoltage Protection | Sì | |
Mechanical data
| Dimensions | 20x44,9x60mm | |
| Weight | 300g | |
| Connections | Cavo 2m PVC | |
| Active Head Material | PMMA | |
| Operating temperature | -25°C…+55°C | |
| Material | ABS | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibrazioni IEC 60068-2-6 / Urti IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | Staffa di montaggio STFG 00 | |
Electrical diagrams of the connections
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
