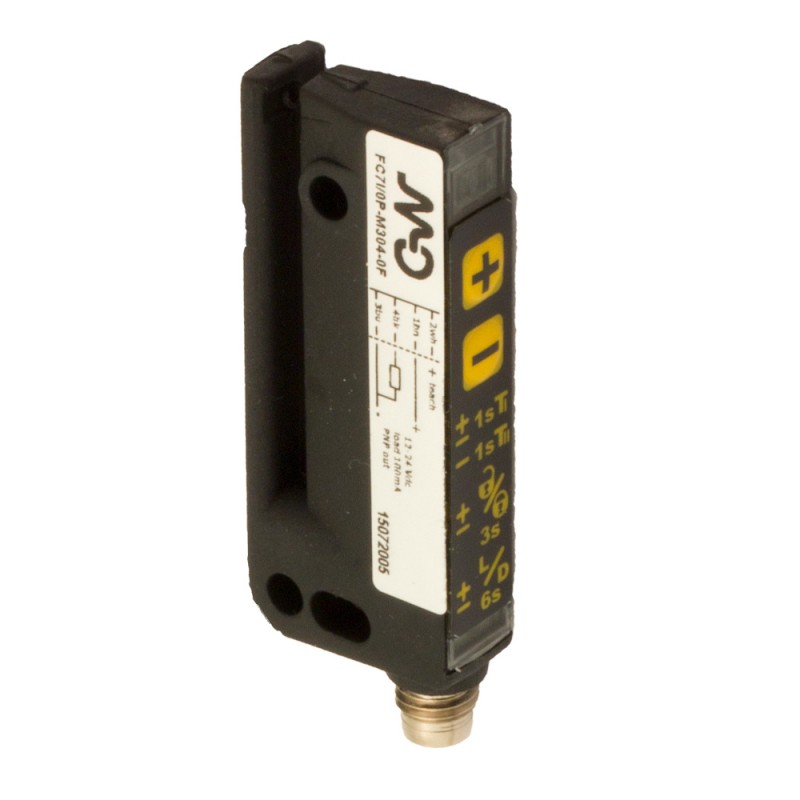

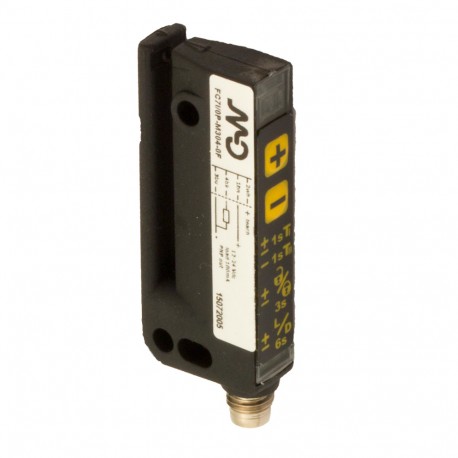

FC7I/0B-M304-0F MICRO DETECTORS Slot sensor for labels detection 3mm wide IR emission PNP+NPN M8
FC7I/0B-M304-0F
MICRO DETECTORS
Slot sensor for labels detection 3mm wide IR emission PNP+NPN M8
FC7I/0B-M304-0F Slot sensor for labels detection 3mm wide IR emission PNP+NPN M8
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 3mm | |
| minimum detectable object | 2mm | |
| Sensitivity adjustment | Yes | |
| +/-50 µm a 150m/min | +/-50 µm at 150m/min | |
| 200 m/min | 200 m/min | |
| 2mm | 2mm | |
Outputs
| Output type | NPN/PNP | |
| Output Function | LO/DO selectable | |
| Switching frequency | 10kHz | |
Electrical data
| Operating Voltage | 12-24Vdc | |
| No-Load supply current | ≤ 35mA | |
| Load current | 100mA | |
| Output voltage drop | ≤ 2 V @ IL =100 mA | |
| Max ripple content | ≤ 10% | |
| Time delay before availability | 50ms max | |
| Reverse Polarity Protection | Yes | |
| Emission | Infrared | |
Mechanical data
| Dimensions | Width slot detection 3mm - Depth slot detection 42mm | |
| Weight | 35g | |
| Housing Material | PA | |
| Connections | M8 plug 4 pin | |
| Operating temperature | - 20°C…+ 60°C | |
| Storage temperature | - 30°C…+ 80°C | |
Test/Approvals
| Approvals | CEUL | |
| EMC compatibility | EN 60529 | |
| Degree of protection | IP65 | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
